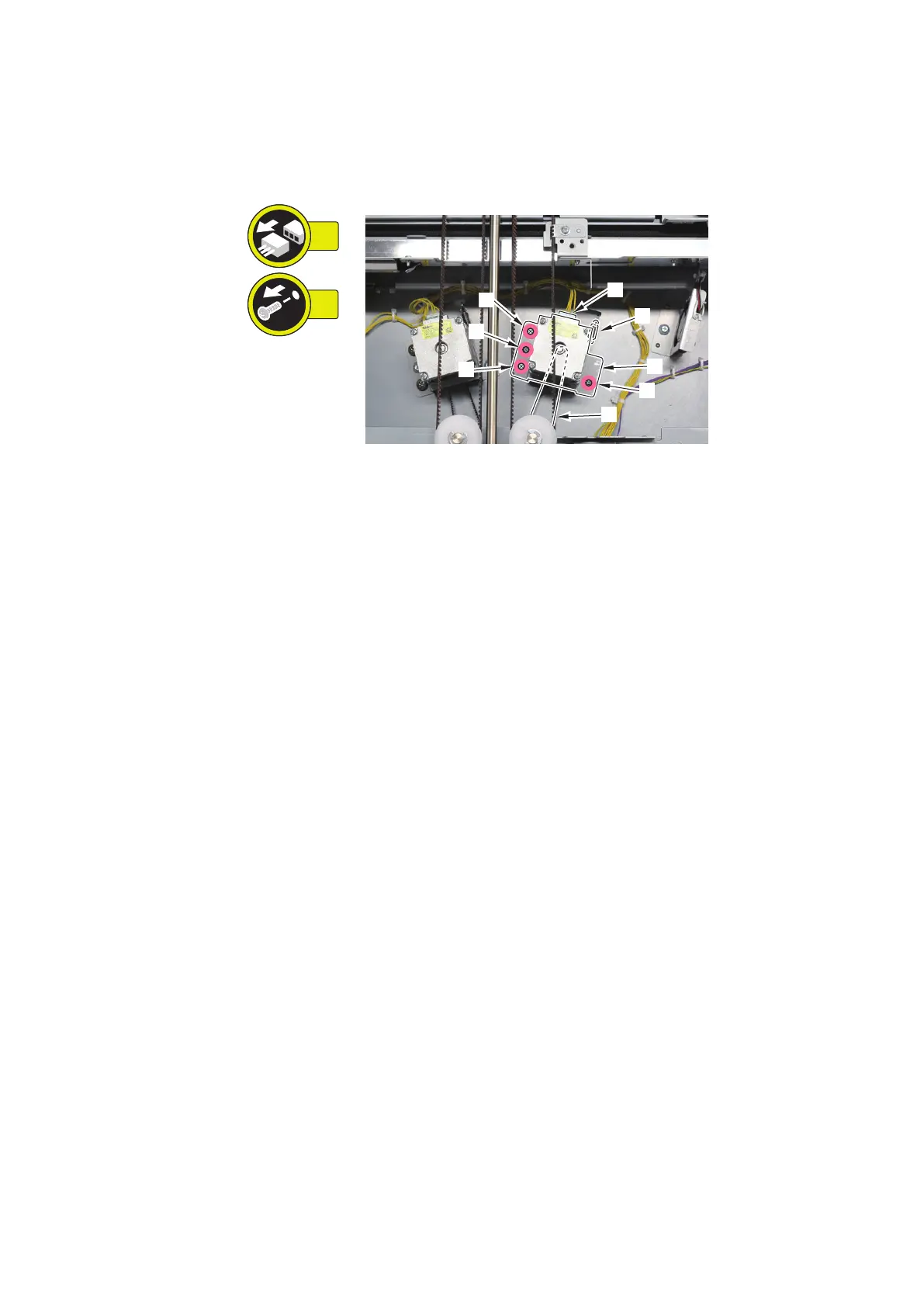

2. Remove the Rear Alignment Plate Motor [1].
• 1 Connector [2]
• 1 Spring [3]
• 2 Screws [4]
• 2 Stepped Screws [5]
• 1 Timing Belt [6]
4x
[1]
[2]
[3]
1x
[4]
[5]
[6]
[4]
[5]
4. Parts Replacement and Cleaning
