■ Procedure

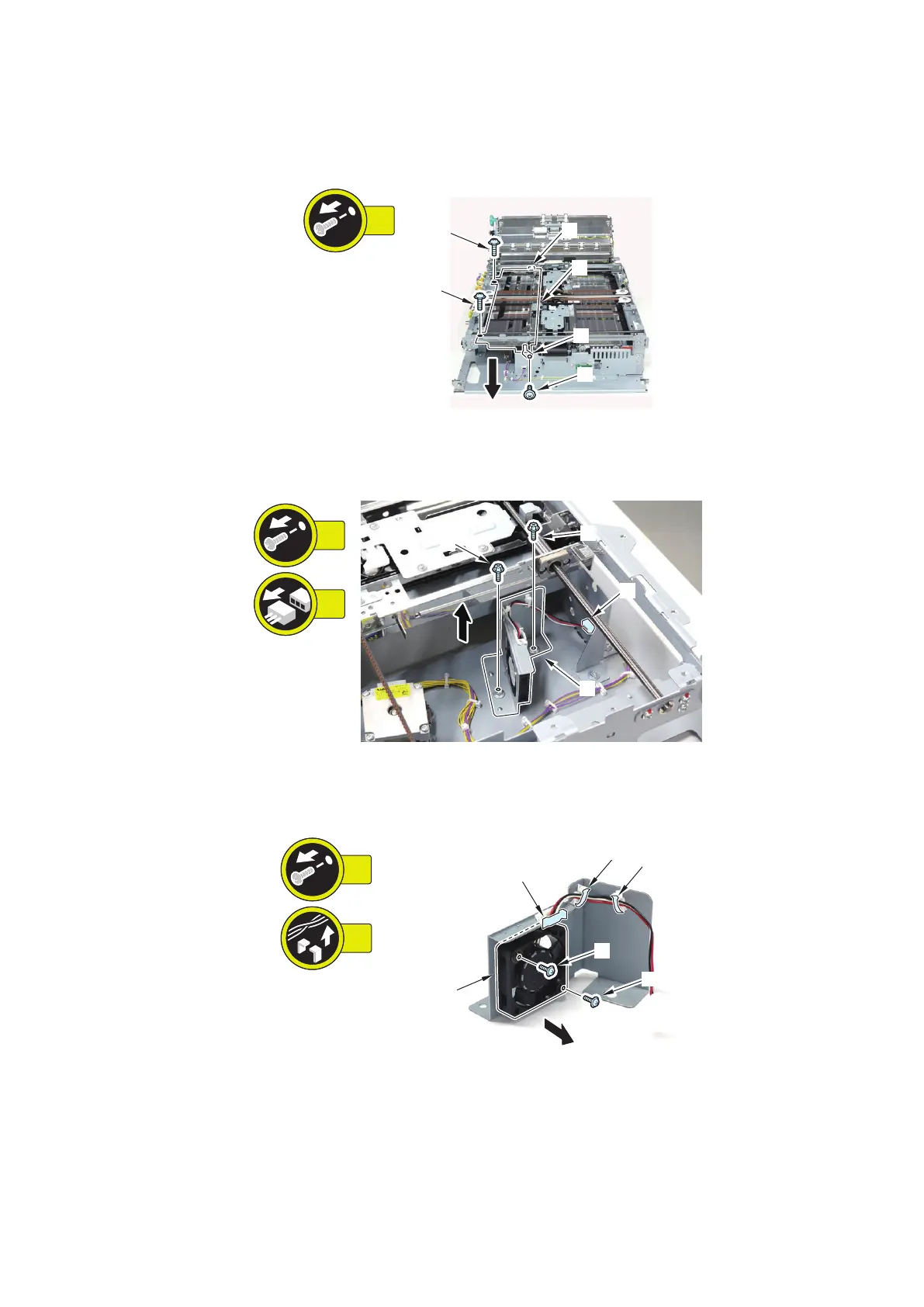

1. Remove the Fixing Pin [1] and the Guide Plate [2].
• 3 Screws [3]
• 1 Hook [4]
3x
[2]
[1]
[3]
[3]
[3]
[4]
2. Remove the Through Path Cooling Fan Unit [1].
• 2 Screws [2]
• 1 Connector [3]
2x
[1]
[2]
[2]
[3]
1x
3. Remove the Through Path Cooling Fan 1 [1].
• 2 Screws [2]
• 3 Wire Saddles [3]
2x
3x
[1]
[2]
[2]
[3]
[3]
[3]
4. Parts Replacement and Cleaning
