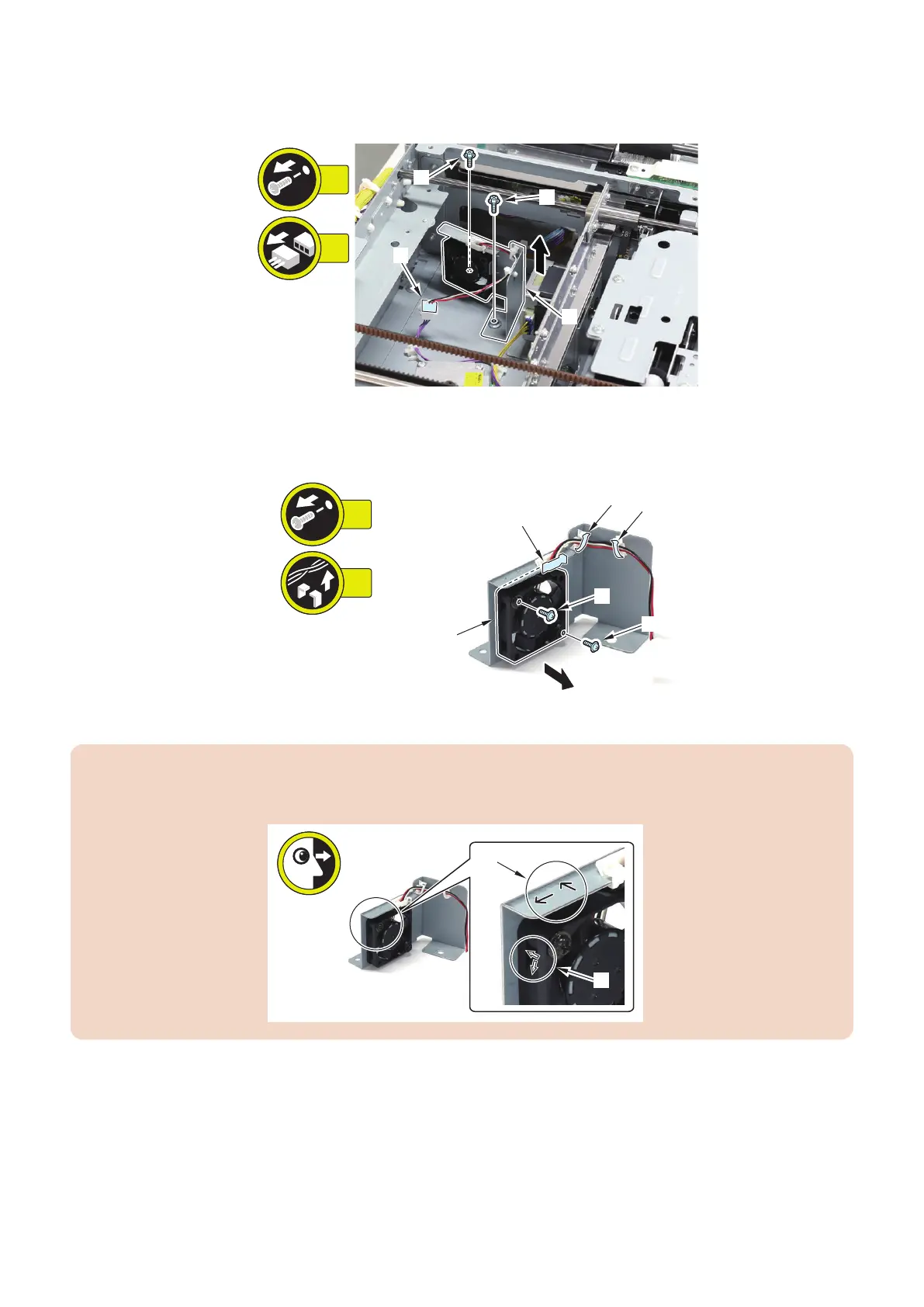

2. Remove the Through Path Cooling Fan Unit [1].
• 2 Screws [2]
• 1 Connector [3]
2x
[1]
[2]
[2]
[3]
1x
3. Remove the Through Path Cooling Fan 2 [1].
• 2 Screws [2]
• 3 Wire Saddles [3]
2x
3x
[1]
[2]
[2]
[3]
[3]
[3]
CAUTION:
When installing the Through Path Cooling Fan, align the direction of the arrow [B] on the fan with the arrow (engraved mark)
[A] of the plate.
[A]
[B]
4. Parts Replacement and Cleaning
131
