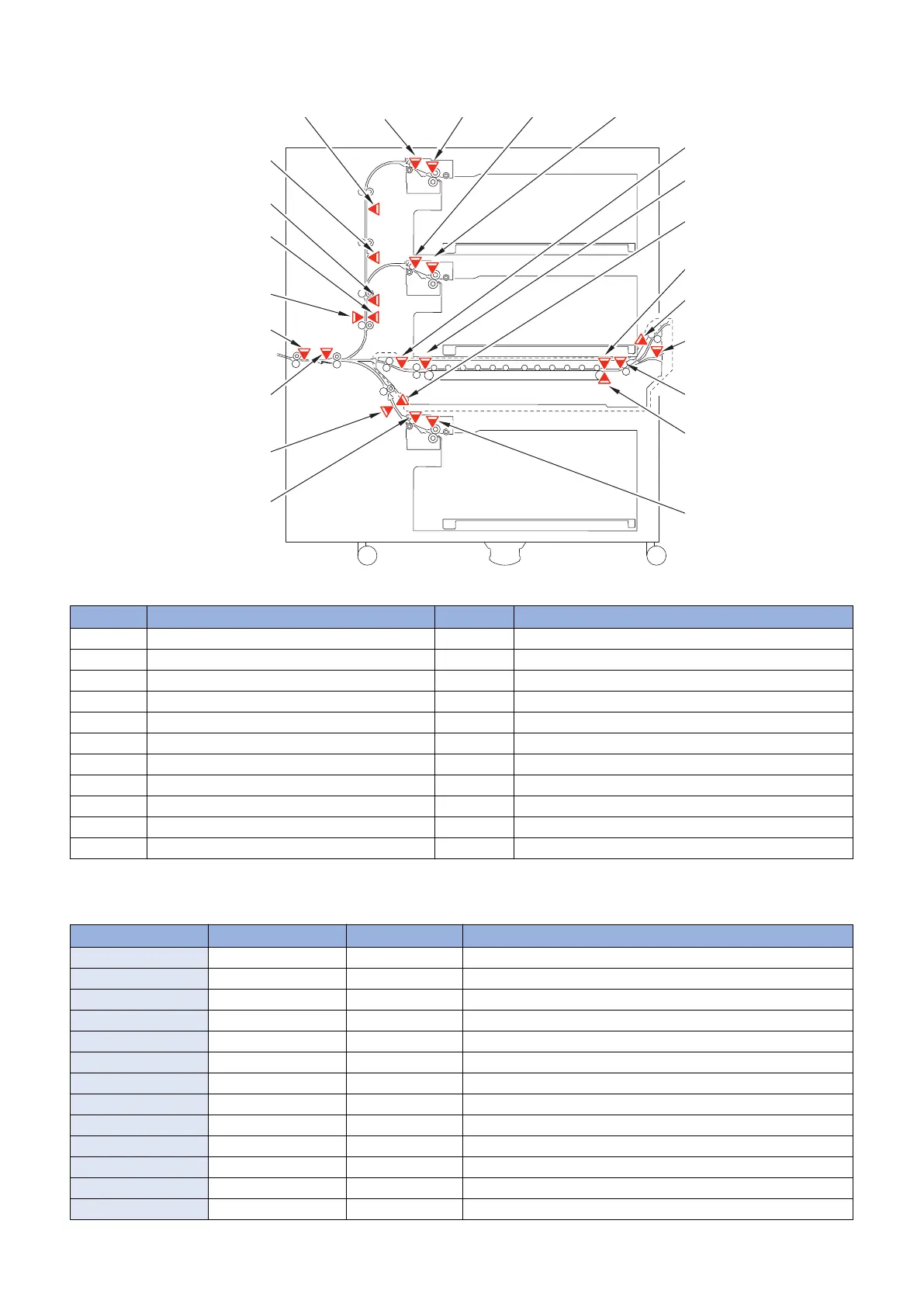

S103S104S001
S002
S003
S502
S005
S204 S203
S64
S60
S420
S304
S303
S004
S401
S402
S421
S504
S501
S65
S503
No. Part Name No. Part Name
S001 Vertical Path Upper Sensor S401 Multi Tray Inlet Sensor
S002 Vertical Path Middle Sensor S402 Through Path Inlet Sensor
S003 Vertical Path Lower Sensor S420 Through Path Double Feeding Sensor (receive)
S004 Horizontal Path Sensor 1 S421 Through Path Double Feeding Sensor (transmission)
S005 Horizontal Path Sensor 2 S501 Upper Double Feeding Sensor (receive)
S103 Upper Deck Pickup Sensor S502 Upper Double Feeding Sensor (transmission)
S104 Upper Deck Pull-out Sensor S503 Lower Double Feeding Sensor (receive)
S203 Middle Deck Pickup Sensor S504 Lower Double Feeding Sensor (transmission)
S204 Middle Deck Pull-out Sensor S60 Through Path Outlet Sensor 1
S303 Lower Deck Pickup Sensor S64 Through Path Outlet Sensor 2
S304 Lower Deck Pull-out Sensor S65 Connect Deck Inlet Sensor
■ Jam Types
Jam Code Jam Types Sensor Sensor Name
2001 Delay jam S103 Upper Deck Pickup Sensor
2002 Delay jam S203 Middle Deck Pickup Sensor
2003 Delay jam S303 Lower Deck Pickup Sensor
2004 Delay jam S104 Deck Pull-out Sensor
2005 Delay jam S204 Middle Deck Pull-out Sensor
2006 Delay jam S304 Lower Deck Pull-out Sensor
2008 Delay jam S002 Vertical Path Middle Sensor
2009 Delay jam S003 Vertical Path Lower Sensor
2010 Delay jam S004 Horizontal Path Sensor 1
2011 Delay jam S005 Horizontal Path Sensor 2
2013 Delay jam S401 Multi Tray Inlet Sensor
2015 Delay jam S60 Through Path Outlet Sensor 1
2017 Delay jam PS152 Multi-purpose Tray Pickup Sensor
