Canon E1 - Page 66

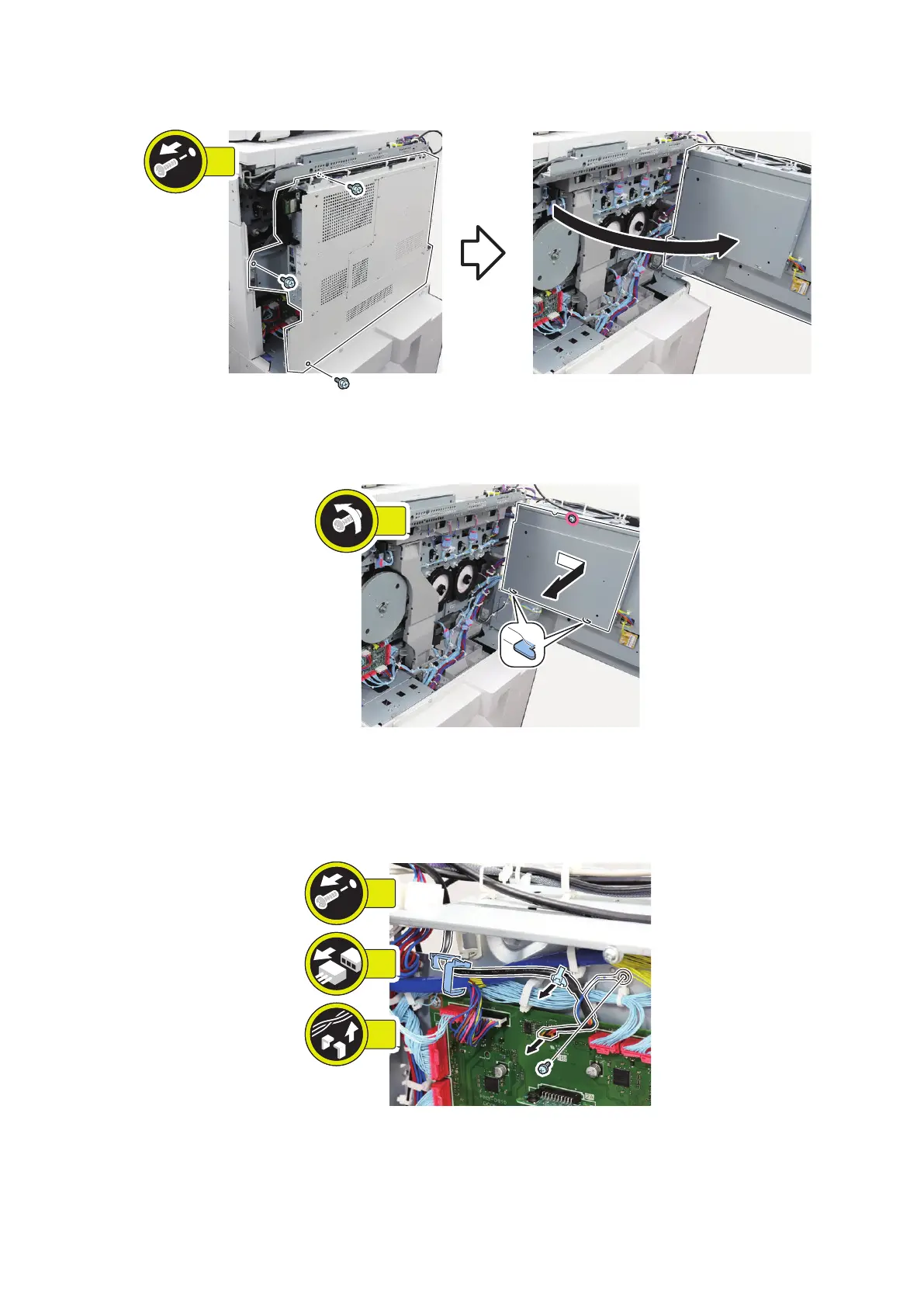

28. Open the Controller Box Unit.
• 3 Screws
3x
29. Remove the DC Controller Cover.
• 1 Screw (to loosen)
• 2 Hooks
1x
30. Remove the Synchronous Communication Cable from the DC controller.
• 1 Screw (W Sems; M3×6)
• 1 Connector
• 1 Reuse Band
• 2 Wire Saddles
1x
3x
1x
4. Parts Replacement and Cleaning
58
