Canon E1 - Page 72

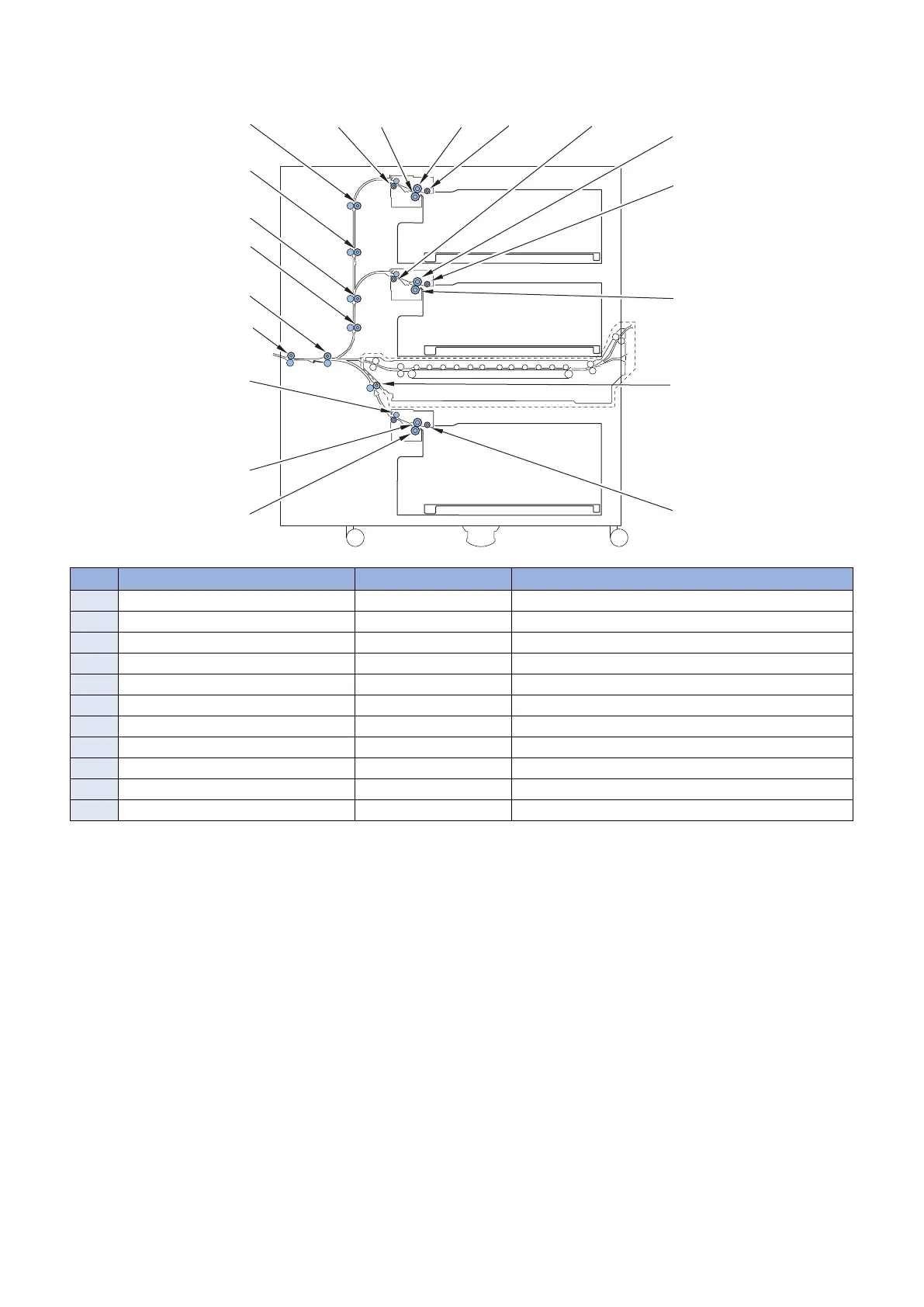

■ Cleaning Points
[2]
[3]
[4]
[1]
[6]
[9]
[5]
[7]
[8]
[10]
[11]
[2]
[3]
[4]
[1]
[2]
[3]
[4]
[1]
No. Part Name Main Unit Reference
[1] Deck Pickup Roller Pickup Unit -
[2] Deck Pickup/Feed Roller Pickup Unit -
[3] Deck Separation Roller Pickup Unit -
[4] Deck Pull-out Roller Pickup Unit -
[5] Vertical Path Upper Feed Roller 1 Feed Unit -
[6] Vertical Path Upper Feed Roller 2 Feed Unit -
[7] Vertical Path Lower Feed Roller 1 Feed Unit -
[8] Vertical Path Lower Feed Roller 2 Feed Unit -
[9] Horizontal Path Feed Roller 1 Feed Unit -
[10] Horizontal Path Feed Roller 2 Feed Unit -
[11] Lower Path Feed Roller Feed Unit -
