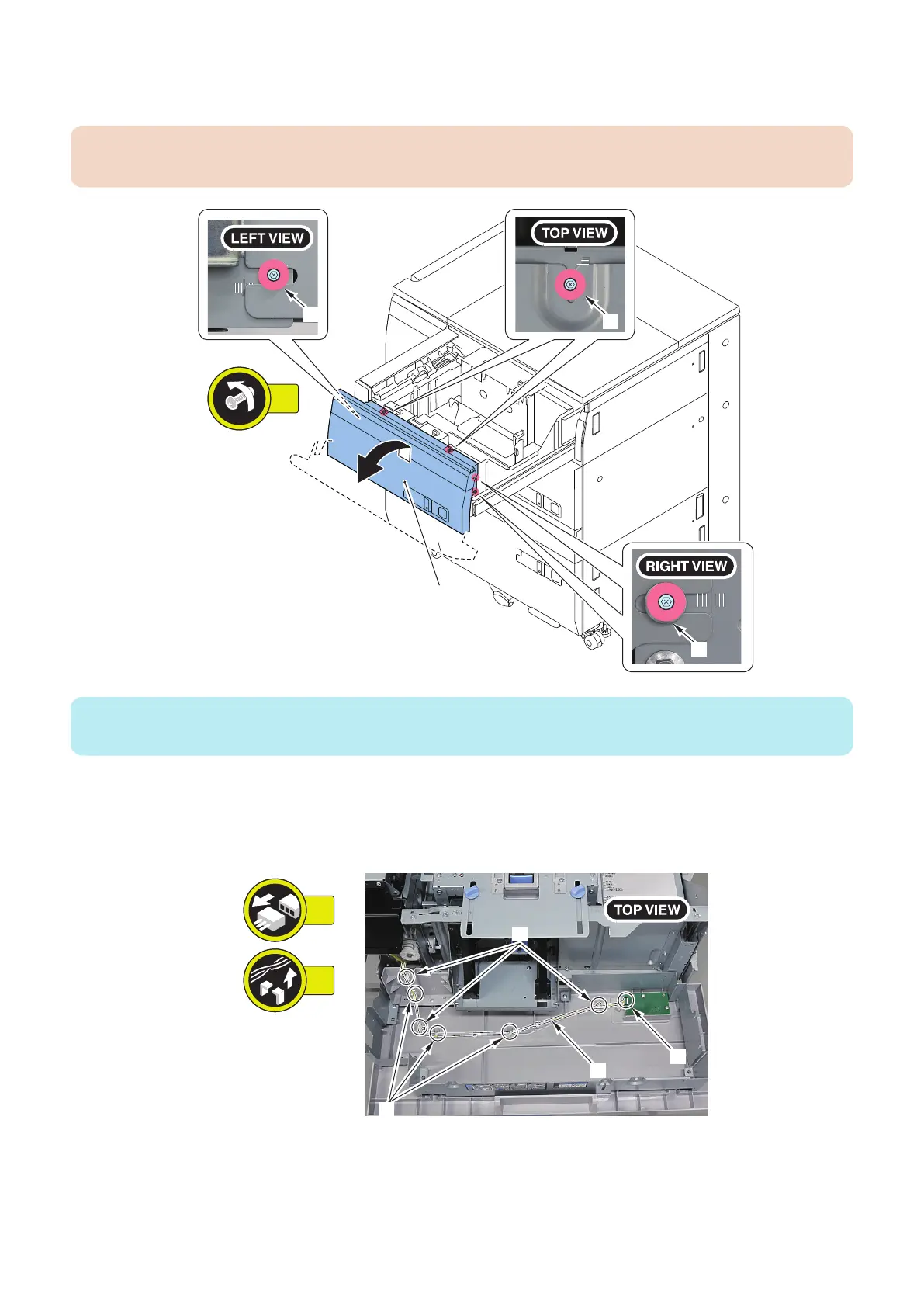

2. Turn the Deck Front Cover [1] toward the front.
• 5 Screws [2]
CAUTION:
When turning the Deck Front Cover, do not break the cable.
5x
[1]
[2]
[2]
[2]
NOTE:
Install the deck cover in alignment with the ruled lines.
3. Disconnect the Cable [1].
• 1 Connector [2]
• 3 Wire Saddles [3]
• 3 Reuse Bands [4]
[3]
[4]
[2]
[1]
6x
1x
