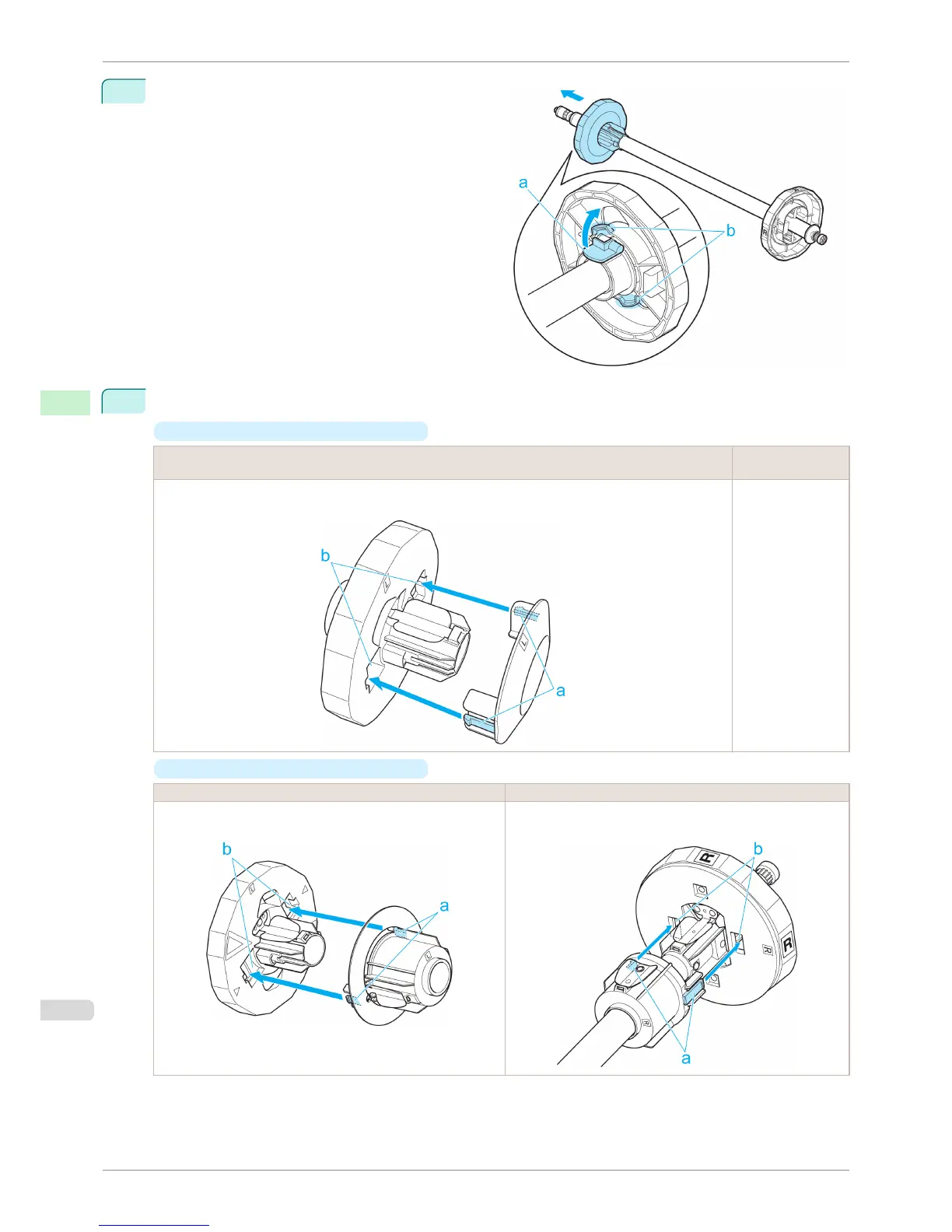

Lift the Holder Stopper lever (a) from the shaft side to
unlock it. Holding the Holder Stopper at the position
indicated (b), remove it from the Roll Holder.
2 Insert the respective attachments for the roll paper core on the Roll Holder and Holder Stopper.
• Using rolls with a 2-inch paper core
Holder Stopper (Left Side)
Roll Holder (Right
Side)
Align the tips (a) of the 2-Inch Paper Core Attachment with the holes (b) of the Holder Stopper and insert it
firmly.
No attachment is
needed.
• Using rolls with a 3-inch paper core
Holder Stopper (Left Side) Roll Holder (Right Side)
Align the tips (a) of the 3-Inch Paper Core Attachment L with the
holes (b) of the Holder Stopper and insert it firmly.
Align the tips (a) of 3-Inch Paper Core Attachment R with the
holes (b) of the Roll Holder and insert it firmly.
