Canon iPF760 - Carriage; Roll Cover (Inside)

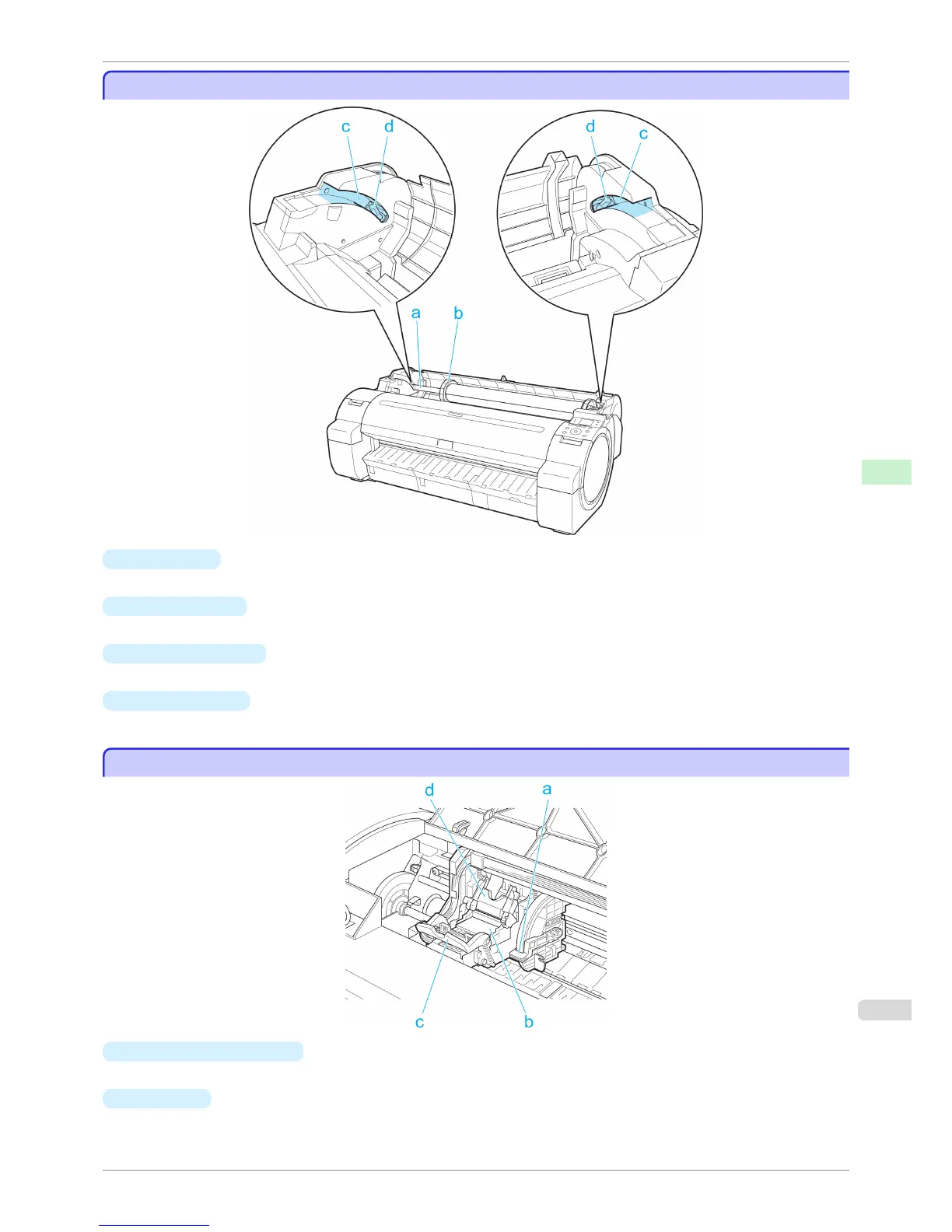

Roll Cover (Inside)
Roll Cover (Inside)
a Roll Holder
Load the roll on this holder.
b Holder Stopper
Secure rolls on the Roll Holder with this part.
c Roll Loading Slots
Slide the Roll Holder along these slots.
d Roll Holder Slot
Load the Roll Holder into this holder slot.
Carriage
Carriage
a Angle Adjustment Lever
Use this lever to fine-tune the printer to correct misalignment of printed lines.
b Printhead
The printhead is equipped with ink nozzles. The carriage serves a key role in printing.
iPF760 Roll Cover (Inside)
User's Guide
Printer Parts Printer parts
467
