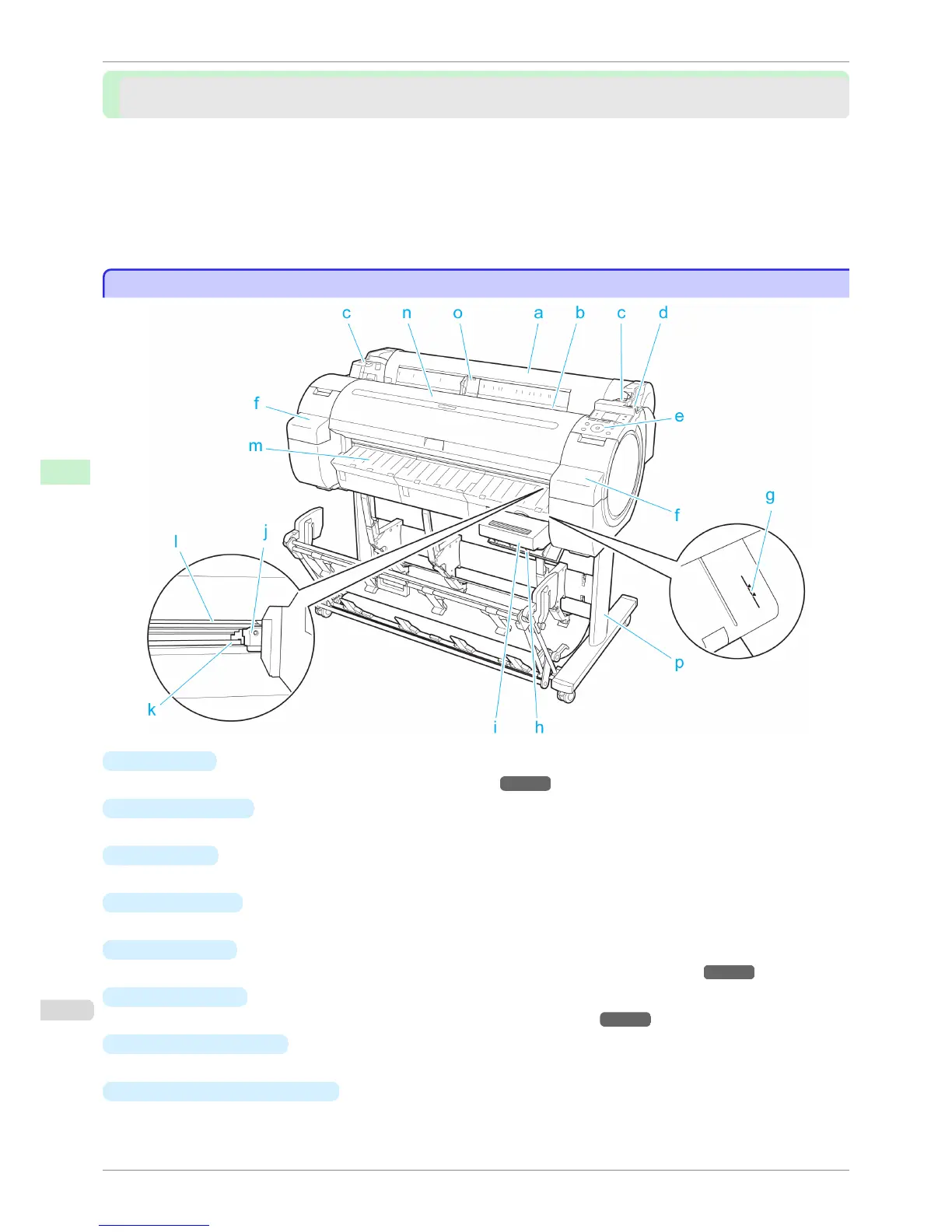

Front
Front
a
Roll Cover
Open this cover to load rolls. (See "Roll Cover (Inside).") →P.467
b
Paper Feed Slot
When loading paper, insert it here.
c
Roll Ledge
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder Slot.
d
Release Lever
When releasing the Paper Retainer, push this lever back.
e
Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.") →P.430
f
Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).") →P.468
g
Paper Alignment Line
An orange line for alignment of paper.
h
Maintenance Cartridge Cover
Open this cover to replace the Maintenance Cartridge.
Front
iPF760
User's Guide
Printer Parts Printer parts
464
