Disassembly
NOTE :
The following special tools are required to perform the repair procedure:
• CH-20018 - Valve Spring Compressor
• CH-20013 - Valve Seal Remover
• CH-20011 - Valve Seal Installer
• CH-20012 - Valve Stem Seal Installer Guide
• CH-20017 - Valve Keeper Installer

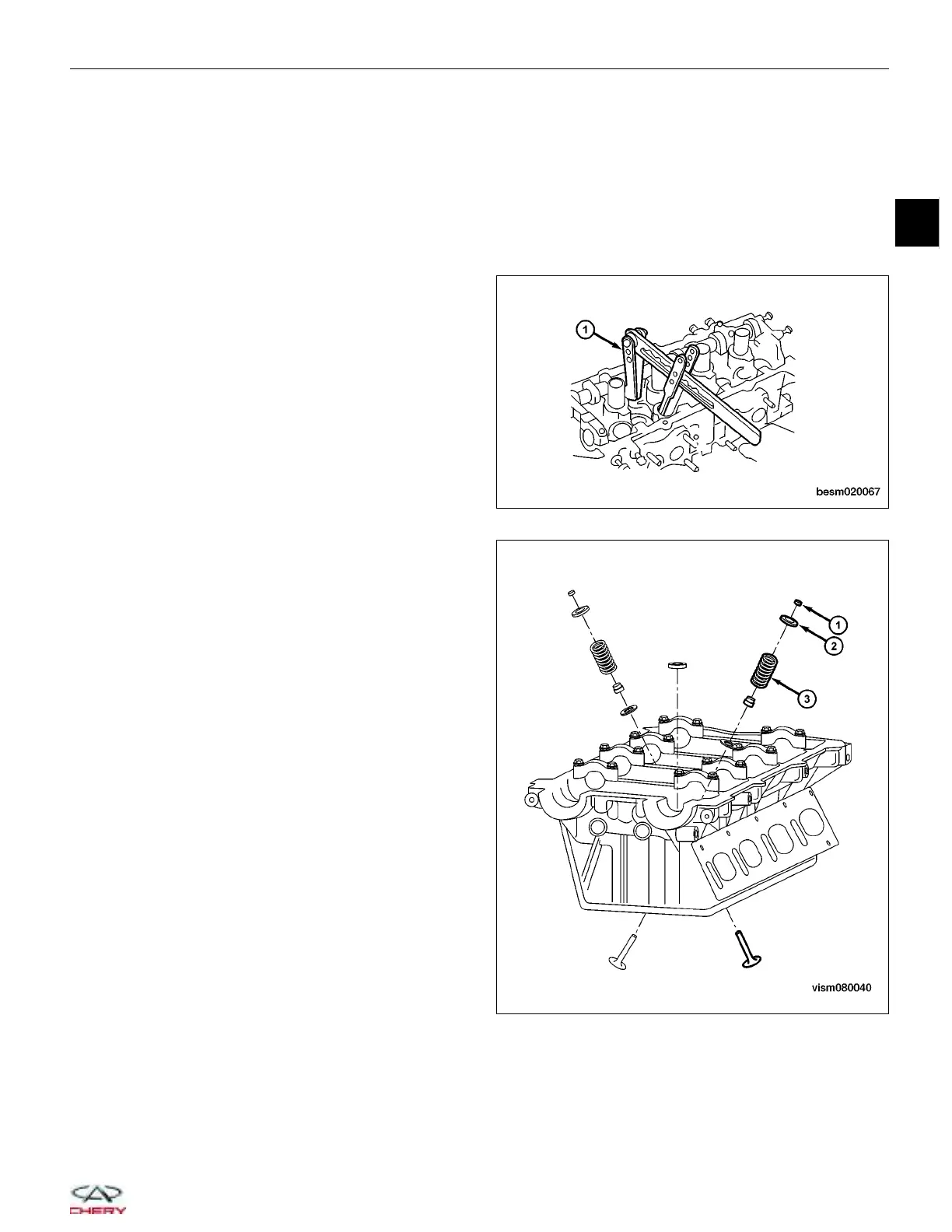

1. Using the special tool CH-20018 (1), compress the
valve springs.
2. Remove the valve keeper (1), and the valve spring
retainer (2).
3. Remove the valve springs (3) from the cylinder
head.
CYLINDER HEAD UNIT REPAIR
BESM020067
VISM080040
02
02–77
