Disassembly

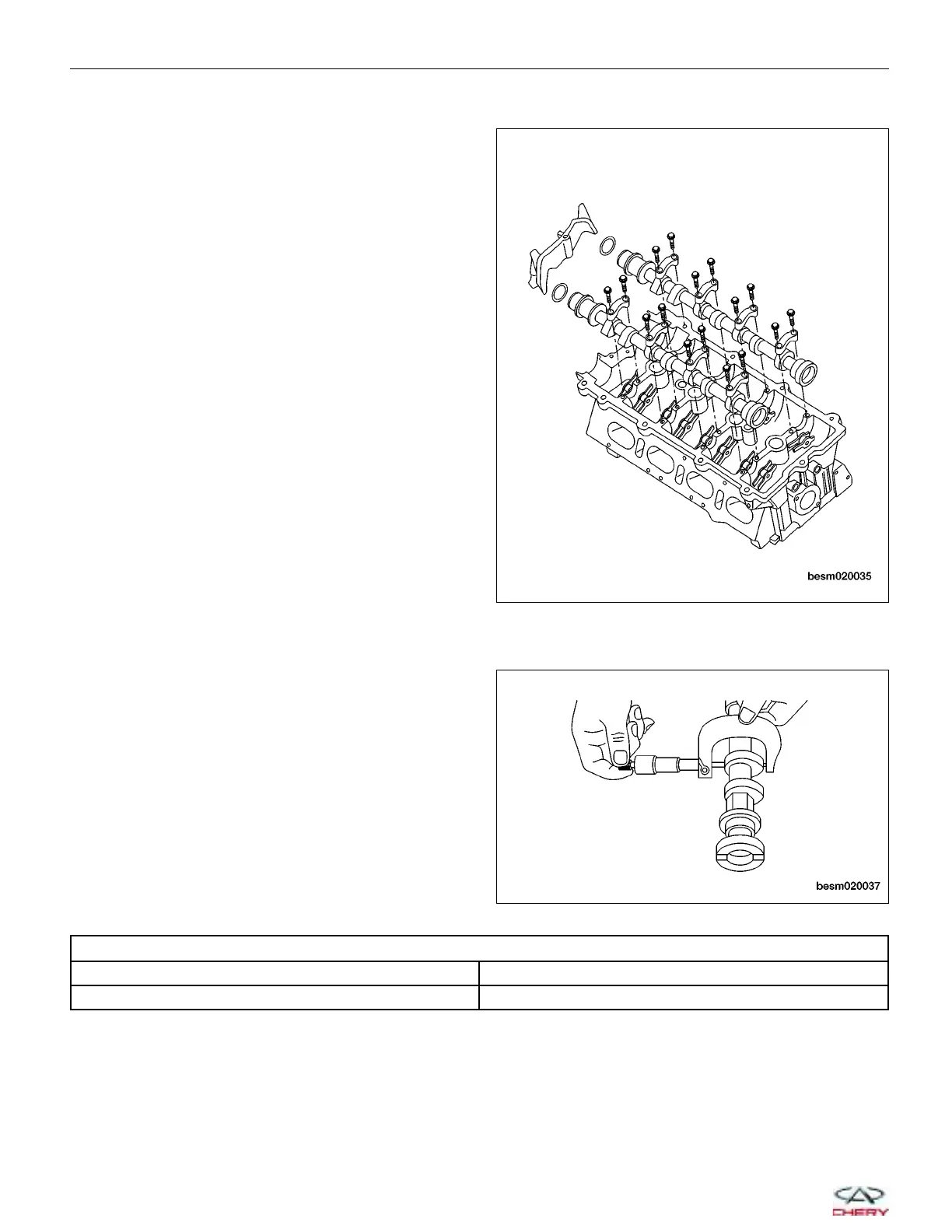

1. Remove the camshaft bearing cap bolts.
NOTE: Equally loosen camshaft bearing cap bolts
in several steps.
2. Remove the camshaft bearing caps and place
them in proper order.
NOTE: The camshaft bearing caps are marked for
identification.
3. Remove the camshafts and then remove the cam-
shaft seals.
Inspection
• Measure the camshaft cam lobe height.
• If wear is beyond the limit, replace the camshaft.
CAMSHAFT CAM LOBE HEIGHT
Intake Cam Lobe Height 37.11 mm
Exhaust Cam Lobe Height 37.09 mm
CYLINDER HEAD UNIT REPAIR
BESM020035
BESM020037
02–70
