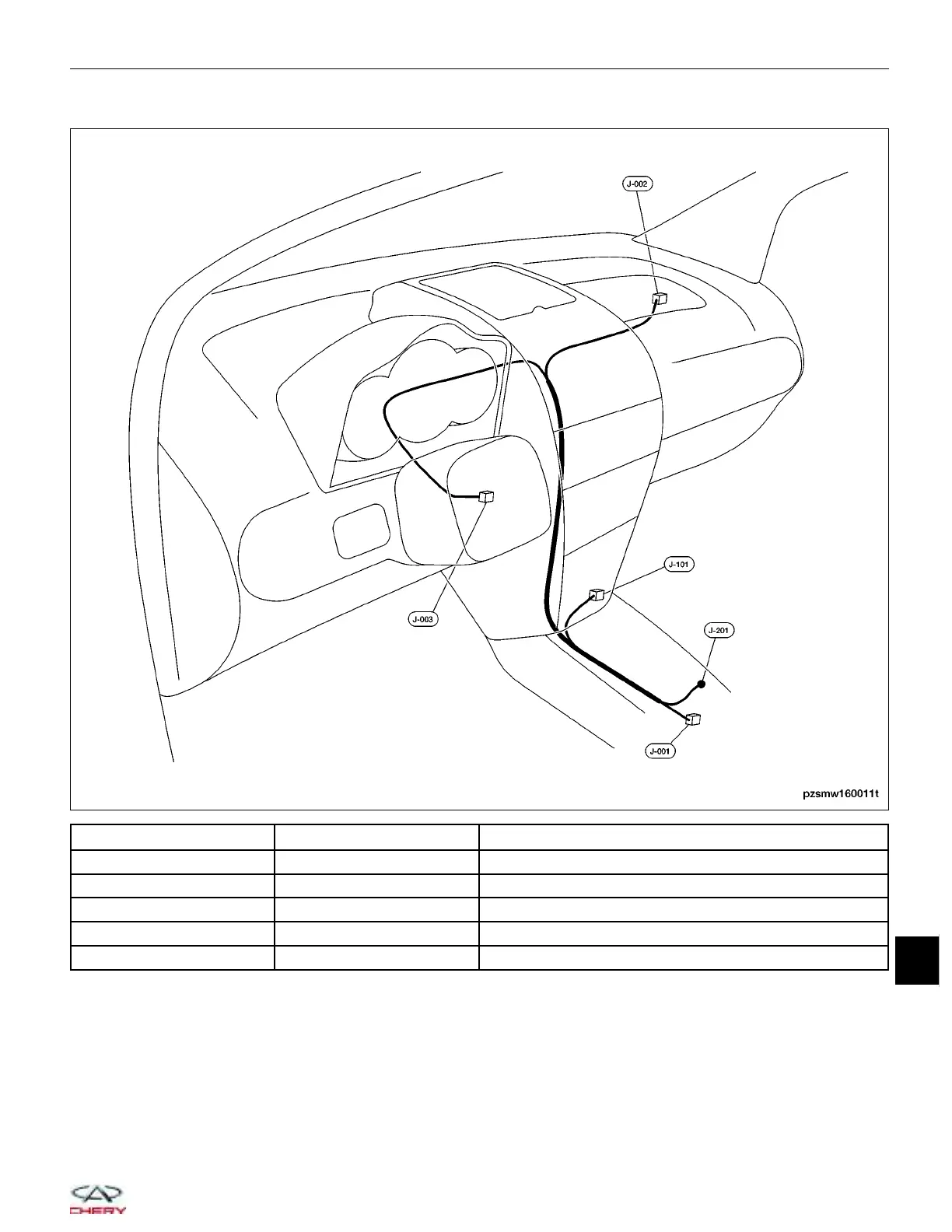

Restraints Harness

J-001 W/25 Restraints Control Module

J-002 G/2 Front Passenger Airbag

J-003 G/2 Driver Airbag

J-005 B/2 Spiral Cable

J-100 W/6 To C-101

J-201 - Ground

VEHICLE HARNESS ROUTING MAPS

PZSMW160011T

16

16–49

Chery Automobile Co., Ltd.
