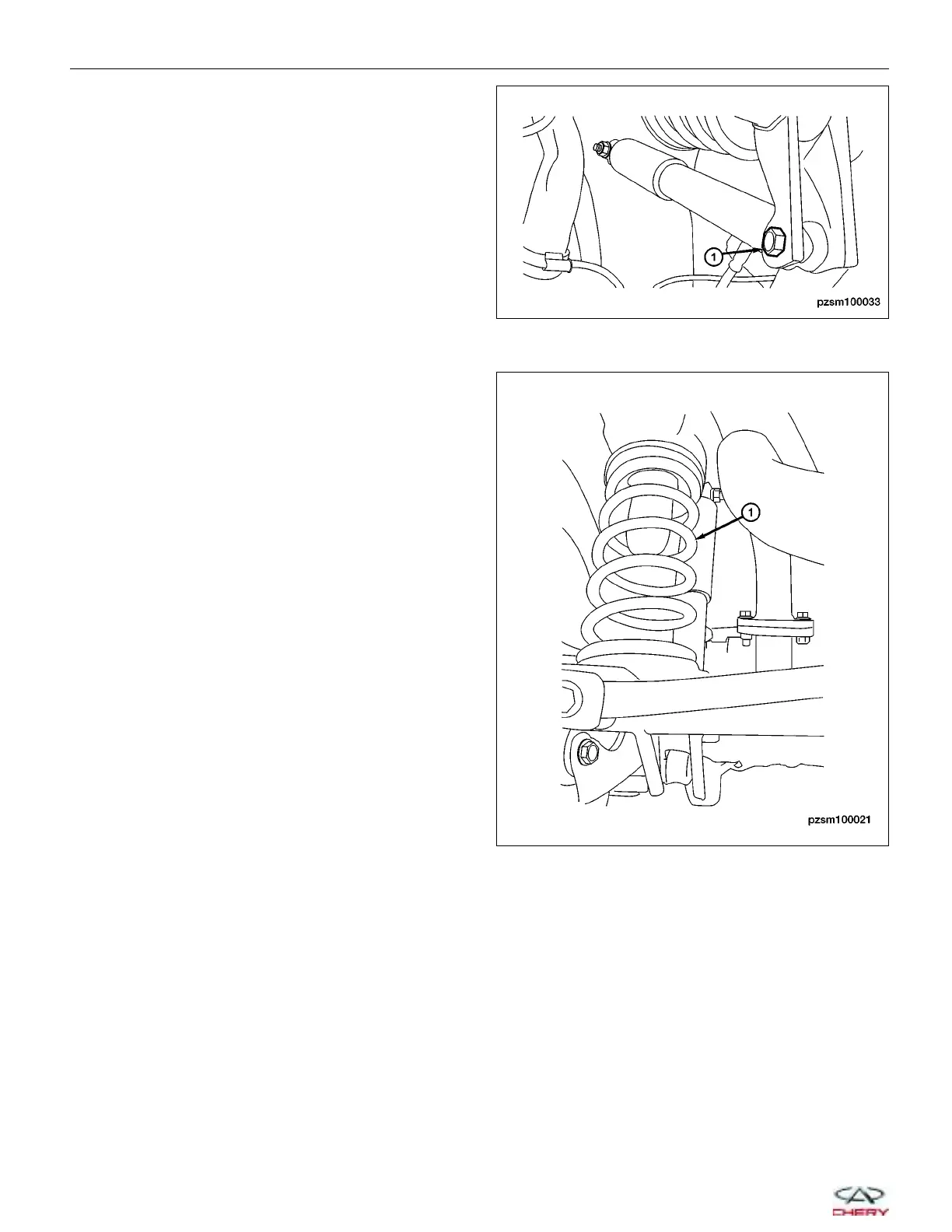

3. Remove the retaining bolt (1) that connects the
rear shock absorber to rear axle assembly.
(Tighten: Rear shock absorber to rear axle assem-
bly bolt to 110 ± 10 N·m)
4. Release the jack slowly.
5. Remove the coil spring (1).
6. Installation is in the reverse order of removal.
Rear Cross Stay
Removal & Installation
1. Raise and support the vehicle.
2. Remove the wheel mounting nuts and the wheel assembly.
(Tighten: Wheel mounting nuts to 110 N·m)
ON-VEHICLE SERVICE
PZSM100033
PZSM100021
10–34
Chery Automobile Co., Ltd.
