Chery A1 2009 User Manual

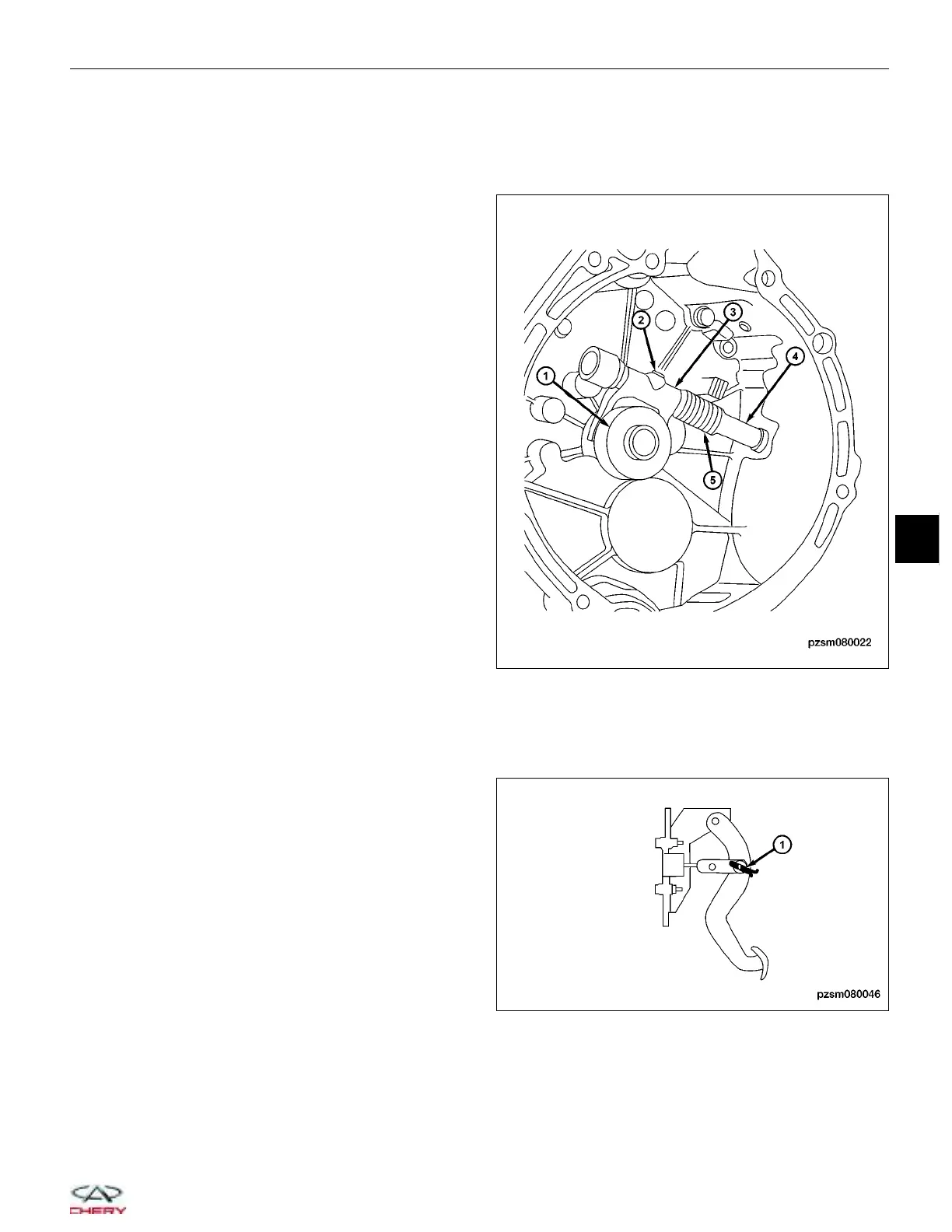

Clutch Release Mechanism
Removal & Installation
1. Remove the transaxle assembly (See Transaxle Assembly Removal & Installation in Section 08 Transaxle).
2. Remove the release arm bolt (2) and release the
return torsion spring (5).
(Tighten: Release arm bolt to 20 ± 2 N·m)
3. Remove the release shaft assembly (4) and
remove the release fork (3).
4. Remove the release bearing (1).
5. Installation is in the reverse order of removal.
Clutch Cable
Removal & Installation
1. Remove the clutch cable to clutch pedal clamp (1).
CLUTCH ASSEMBLY SERVICE
PZSM080022
PZSM080046
08
08–47
Chery Automobile Co., Ltd.
