Chery A1 2009 - Starting System

To Next Page

To Previous Page

Electrical Schematics

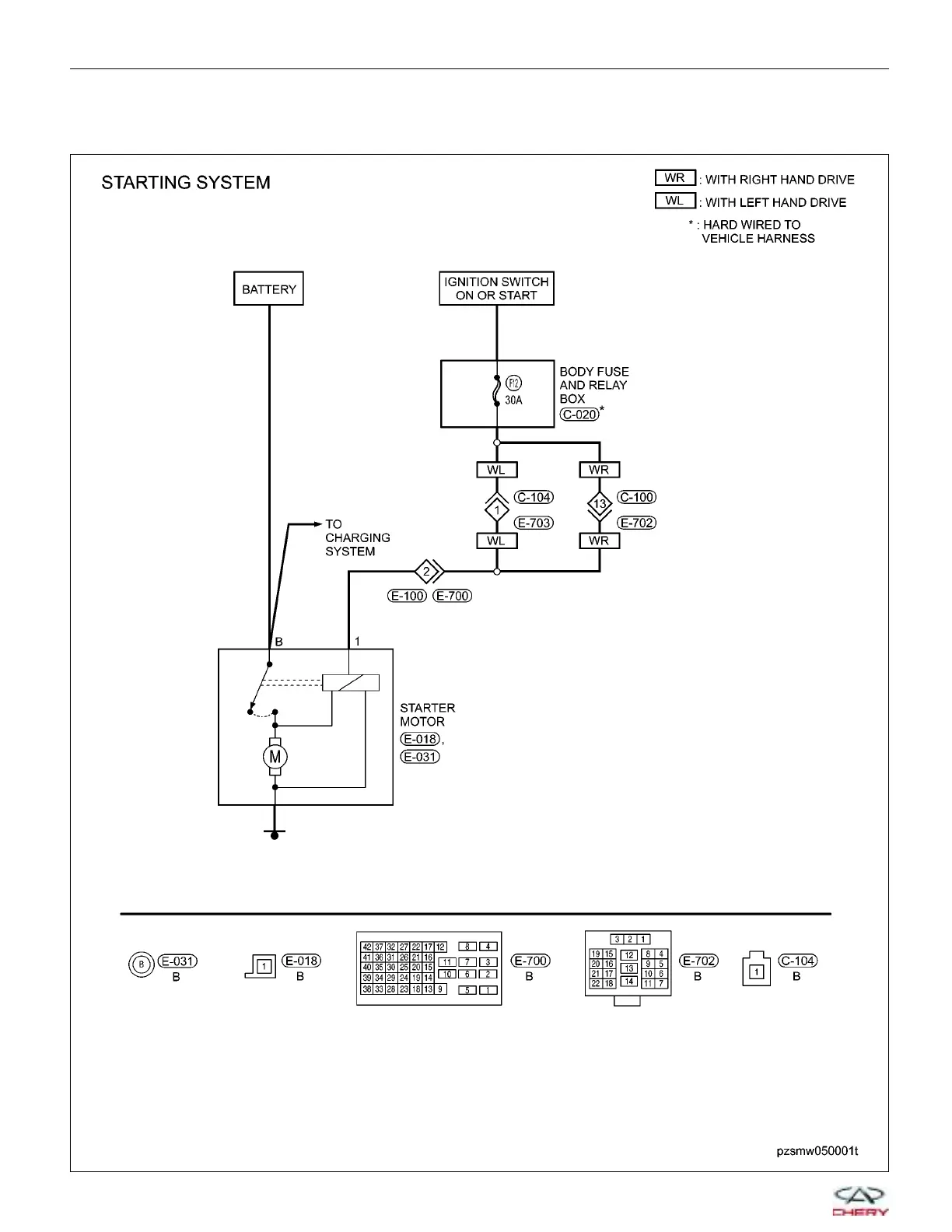

Starting System (Page 1 of 1)

GENERAL INFORMATION

PZSMW050001T

05–4

Chery Automobile Co., Ltd.
