HOW TO READ ELECTRICAL SCHEMATICS

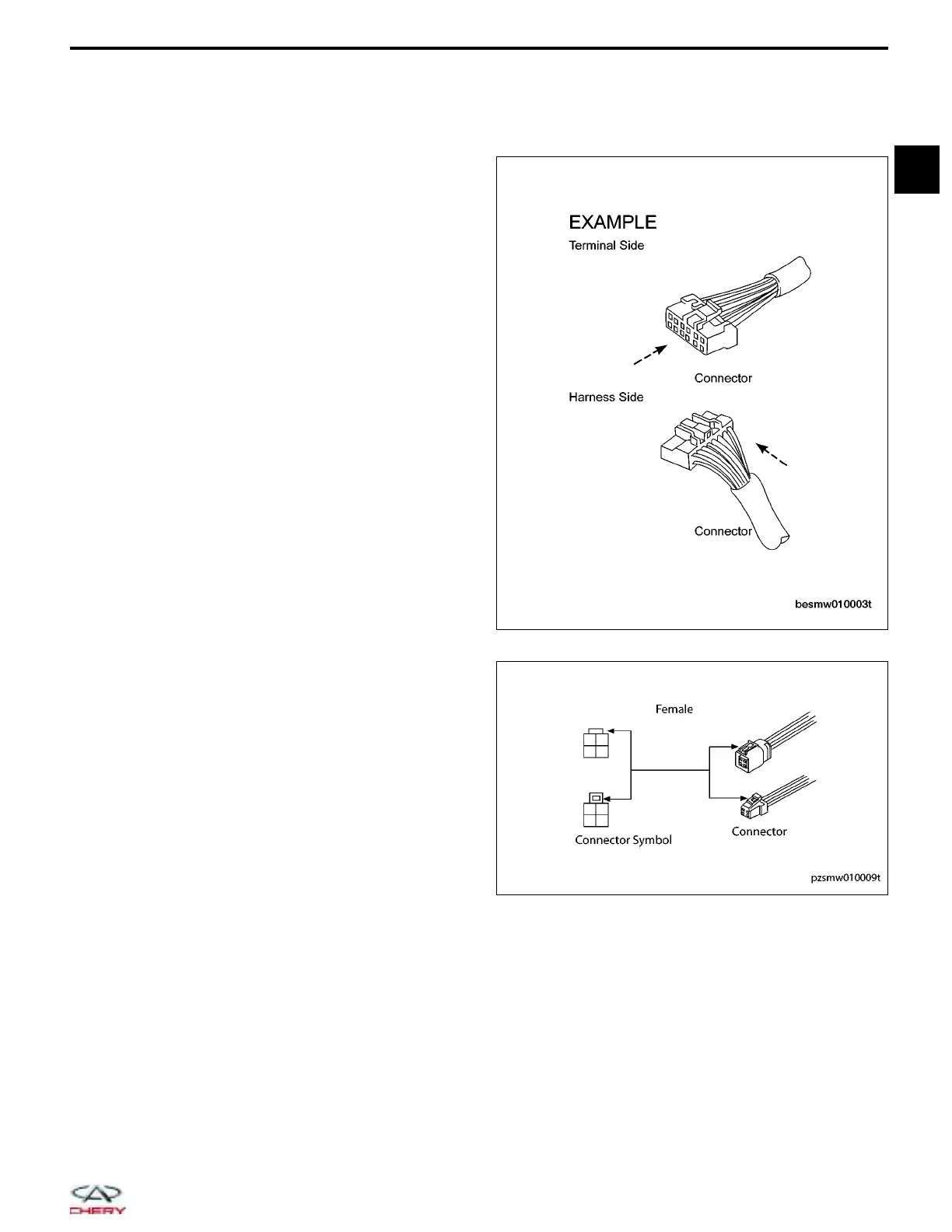

Connector Symbols
• Connector symbols shown from the terminal side
are enclosed by a single line and followed by the
direction mark.
• Connector symbols shown from the harness side
are enclosed by a double line and followed by the
direction mark.
• Most of the connector symbols in the electrical
schematics are shown from the terminal side.
• In electrical schematics, female terminal end views
are shown at the bottom of the page for all compo-
nents that are shown on the schematic page.
BESMW010003T
PZSMW010009T
01
01–21
