INSTRUMENT CLUSTER
Description
The Instrument Cluster (IC) is located in the instrument panel directly in front of the driver. The IC is used to inform
the driver of specific vehicle information. The IC uses indicator lamps and gauges to warn the driver of potentially
critical operating conditions.
Operation
The Instrument Cluster (IC) uses hard wired inputs from various sensors and switches. The sensors and switches are
located throughout the vehicle. The IC displays the following gauges:
• Speedometer - The IC displays the vehicle speed as determined by the Engine Control Module (ECM) indicat-
ing the vehicle speed.
• Tachometer - The IC displays the engine speed as determined by the Engine Control Module (ECM) indicating
engine speed.
• Temperature Gauge - The IC displays the engine coolant temperature as determined by the Engine Control
Module (ECM) indicating engine coolant temperature.
• Fuel Gauge - The IC displays the amount of fuel in the fuel tank as determined by the fuel level sensor.

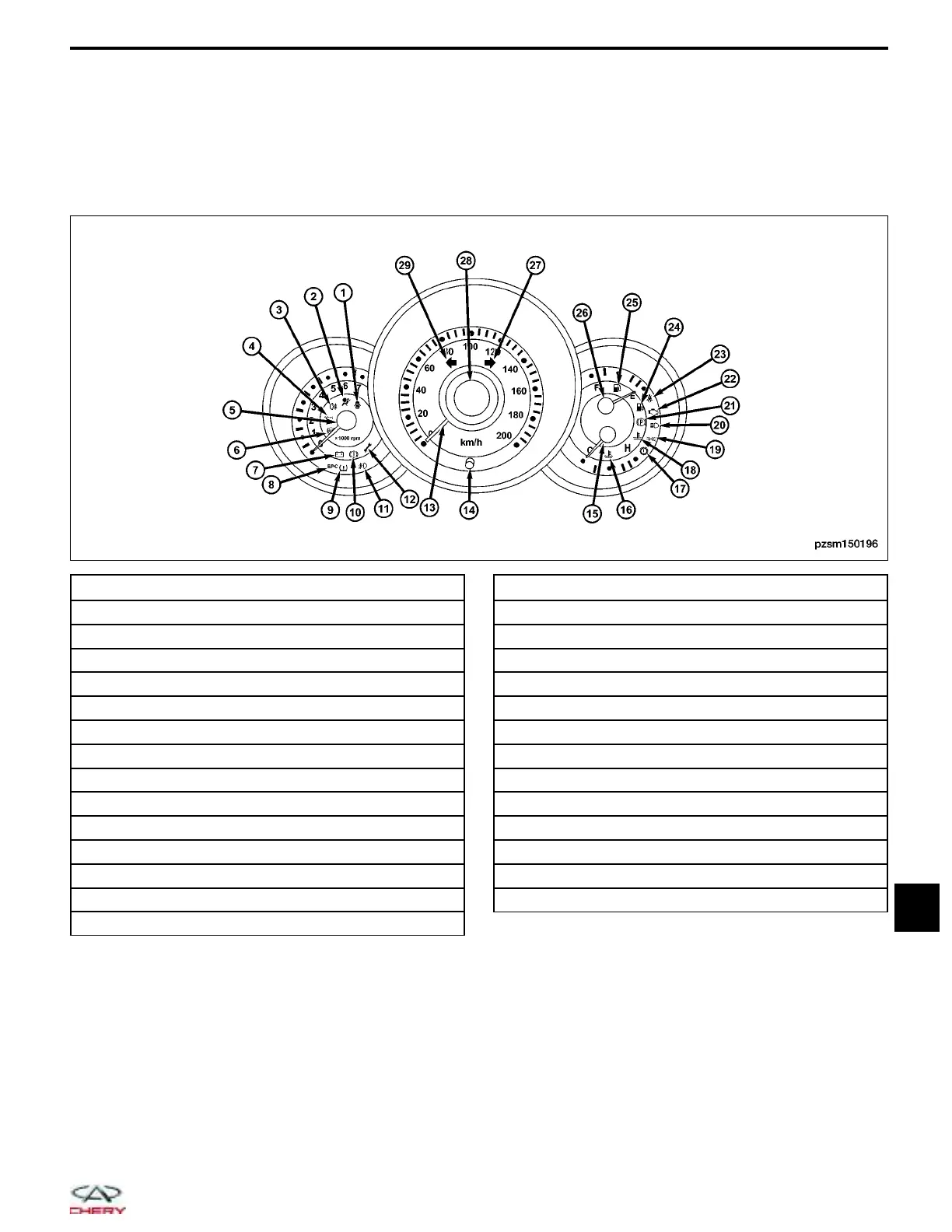

1 - Door Open Warning Display
2 - Airbag Light
3 - Front Fog Light
4 - Oil Pressure Light
5 - Tachometer
6 - Anti-Lock Brake System (ABS) Warning Light
7 - Charging System Light Malfunction Indicator Light
8 - Electronic Throttle Control Indicator Light
9 - Low Tire Warning Light
10 - Brake System Warning Light
11 - Rear Fog Light
12 - Maintenance Indicator Light
13 - Speedometer
14 - Trip Odometer/Digital Clock Button
15 - Temperature Gauge
16 - Temperature Gauge Mark
17 - TCU Indicator Light
18 - Temperature Warning Light
19 - Parking Light
20 - High Beam Indicator Light
21 - Parking Brake System Warning Light
22 - Malfunction Indicator Light
23 - Seat Belt Reminder Light
24 - Low Fuel Warning Light
25 - Fuel Gauge
26 - Fuel Gauge Mark
27 - Right Turn Light
28 - LCD Display
29 - Left Turn Light
PZSM150196
15
15–77
