ON-VEHICLE SERVICE
Generator
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the generator electrical connector.
3. Disconnect the generator cable nut (4).

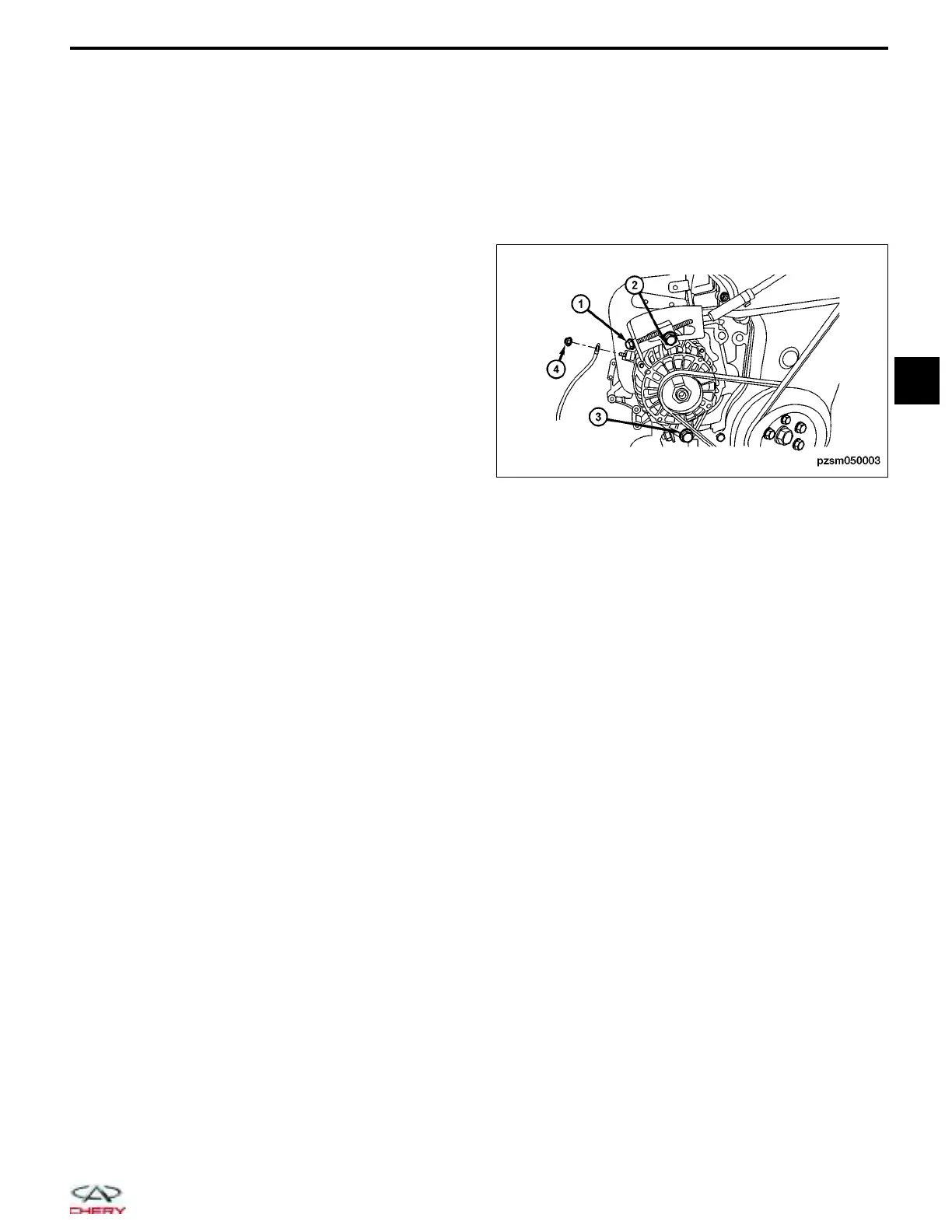

4. Loosen the generator belt tension bolt (1) to
remove the generator drive belt.
5. Remove the generator upper retaining bolt (2).
6. Remove the generator lower retaining bolt (3).
(Tighten: Generator mounting bolts to 30 N·m)
7. Remove the generator from the engine.
8. Installation is in the reverse order of removal.
Installation Note:
• After the generator is installed, adjust the drive belt tension.
Generator Inspection
1. Start the engine.
NOTE: If the battery warning lamp lights, there may be a problem with the charging system.
2. With the engine running, check the output voltage of the generator with a digital multimeter (note the voltage).
3. If the voltage is between 14.1 - 14.7 V, the generator is good.
PZSM050003
