Chery A1 2009 User Manual

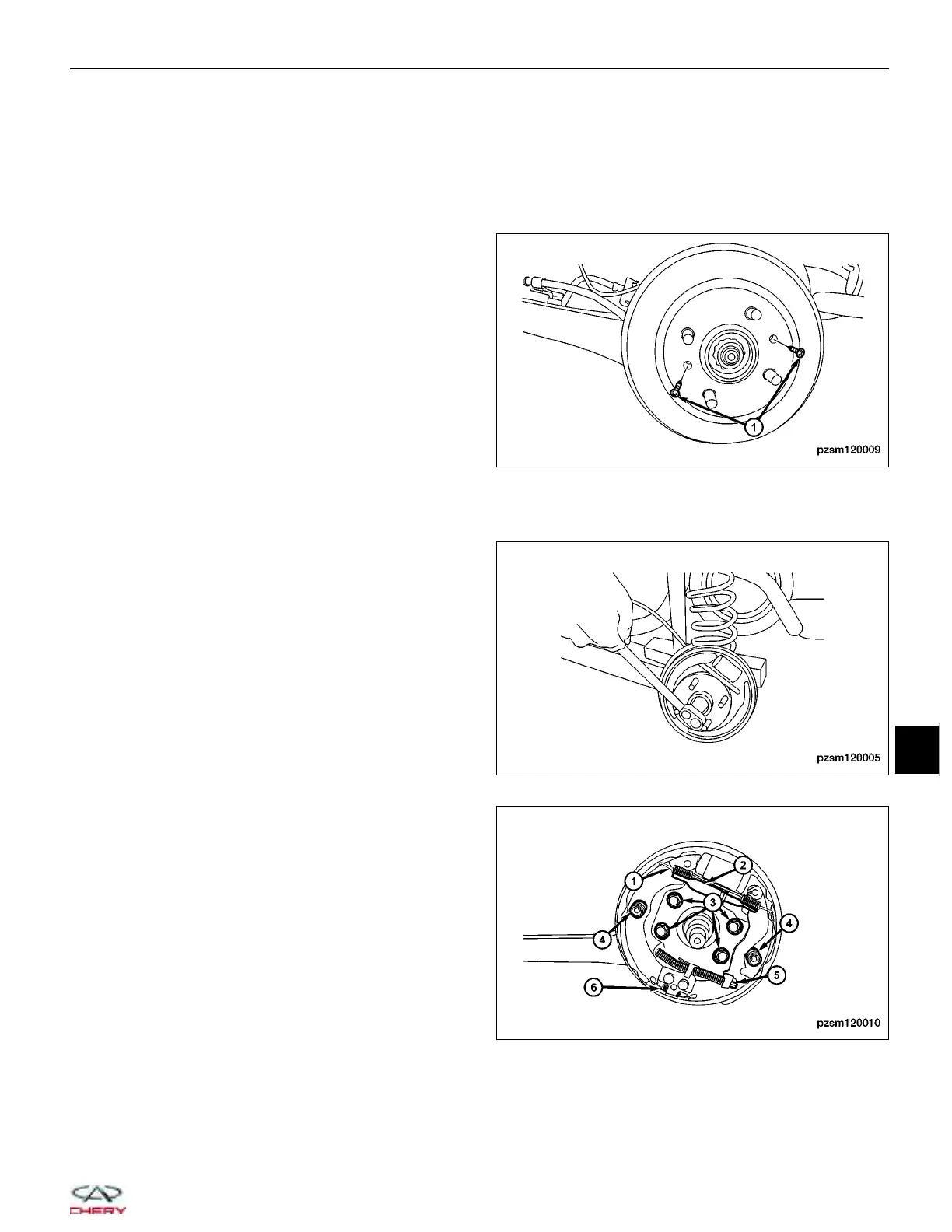

Rear Wheel Cylinder
Removal & Installation
1. Raise and support the vehicle.
2. Remove the wheel mounting nuts and the tire and wheel assembly.
(Tighten: Wheel mounting nuts to 110 N·m)
3. Remove the two brake drum mounting screws (1)
from the brake drum.
4. Remove the brake drum bearing dust cap.
5. Rotate the brake drum and remove the brake drum from the axle hub.
6. Remove the rear hub and bearing nut.
(Tighten: Rear hub and bearing nut to 250 ± 10
N·m)
7. Remove the parking brake cable (5).
8. Remove the upper return spring (1).
9. Remove the lower return spring (6).
10. Remove the brake shoe hold-down springs (4) and
pins. Rotate the pins 90° to disengage.
11. Remove the two brake shoes.
12. Remove the spring (2) and separate the brake
shoes.
ON-VEHICLE SERVICE
PZSM120009
PZSM120005
PZSM120010
12
12–13
Chery Automobile Co., Ltd.
