Fuel Injector Rail
Description
The fuel rail is used to mount the fuel injectors to the engine and it is mounted to the intake manifold.
Operation
The fuel rail supplies the necessary fuel to each individual fuel injector and is located above the intake manifold and
fuel injectors.
Removal & Installation
WARNING!
Release fuel system pressure before servicing fuel system components. Service vehicles in well ventilated areas
and avoid ignition sources. Never smoke while servicing the vehicle. This may result in personal injury or death.
1. Release the fuel system pressure (See Fuel Pressure Relief Procedure in Section 04 Fuel Delivery).
2. Disconnect the negative battery cable.
3. Remove the intake manifold (See Intake Manifold Removal & Installation in Section 02 Engine).
4. Disconnect the electrical connectors from the fuel injectors.
5. Remove the fuel line from the fuel rail.

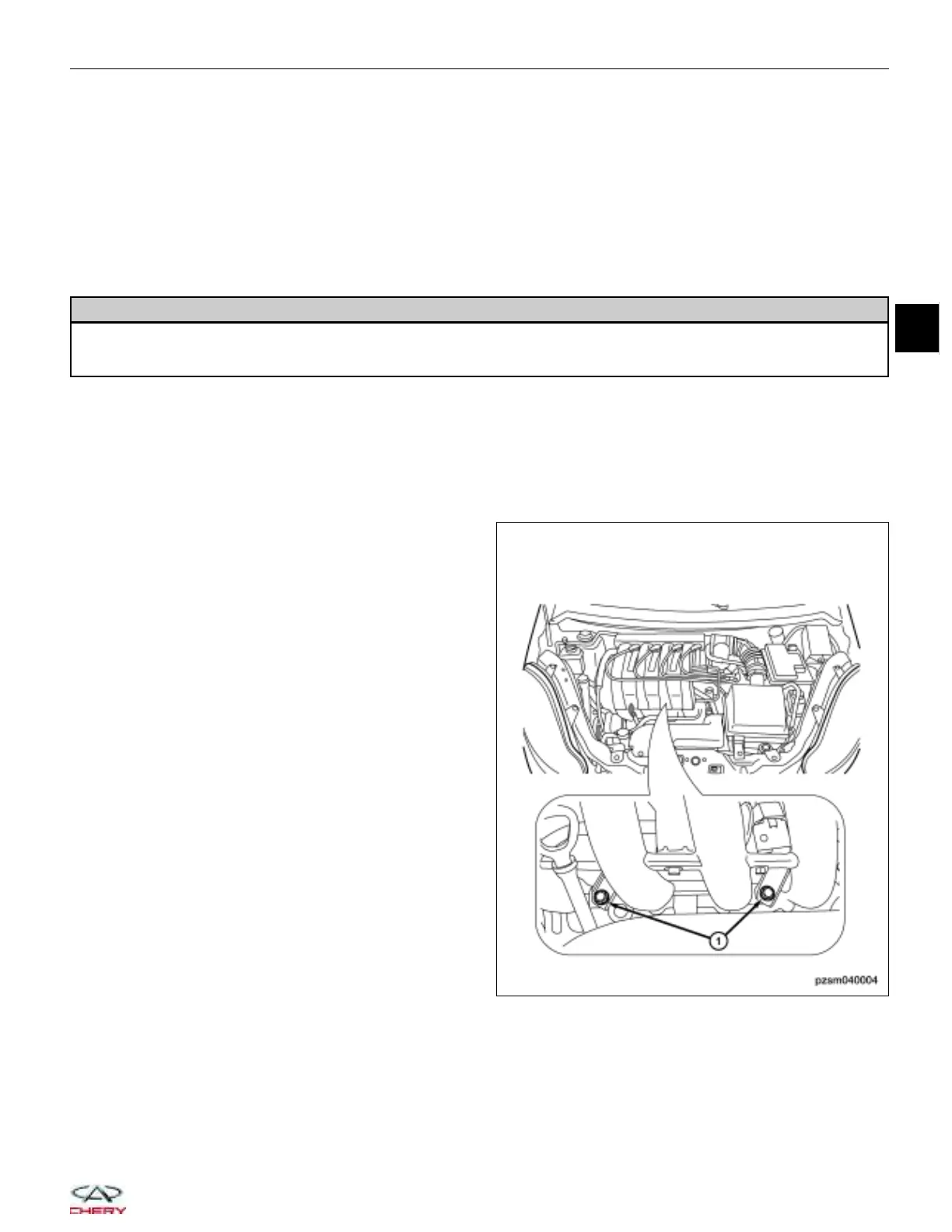

6. Remove the two fuel rail bracket bolts (1).
(Tighten: Fuel rail bracket bolts to 11 N·m)
ON-VEHICLE SERVICE
PZSM040004
04
04–15
Chery Automobile Co., Ltd.
