Name: Chery A1 2009
Brand: Chery
Rating: 5 (1 reviews)

To Next Page

To Previous Page

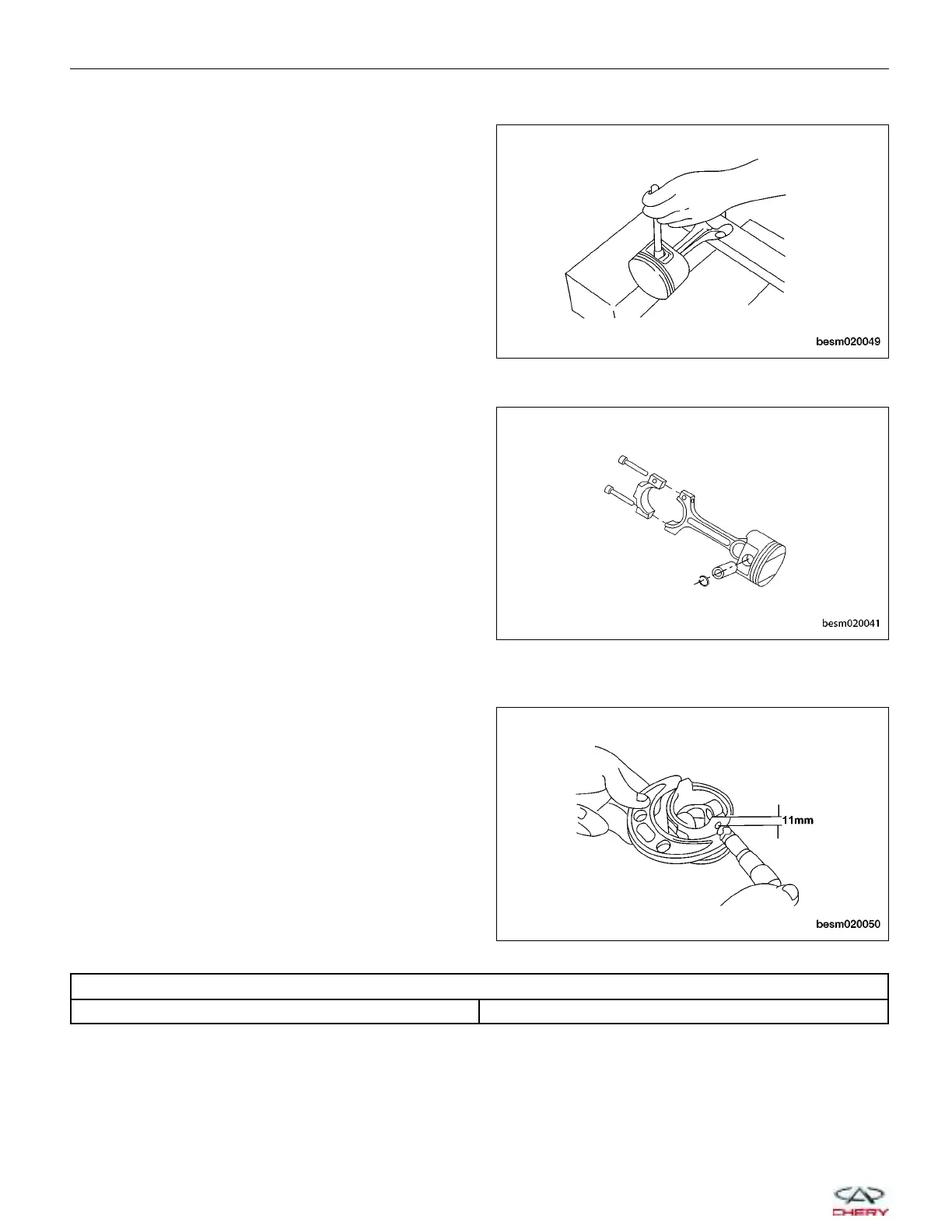

• Piston Pin Removal

− Push out the piston pin with a suitable tool.

• Connecting Rod & Piston Disassembly

− Remove the piston from the connecting rod.

Inspection

Check the piston diameter.

PISTON DIAMETER

All Pistons 72.965 ± 0.009 mm

ENGINE UNIT REPAIR

BESM020049

BESM020041

BESM020050

02–58
