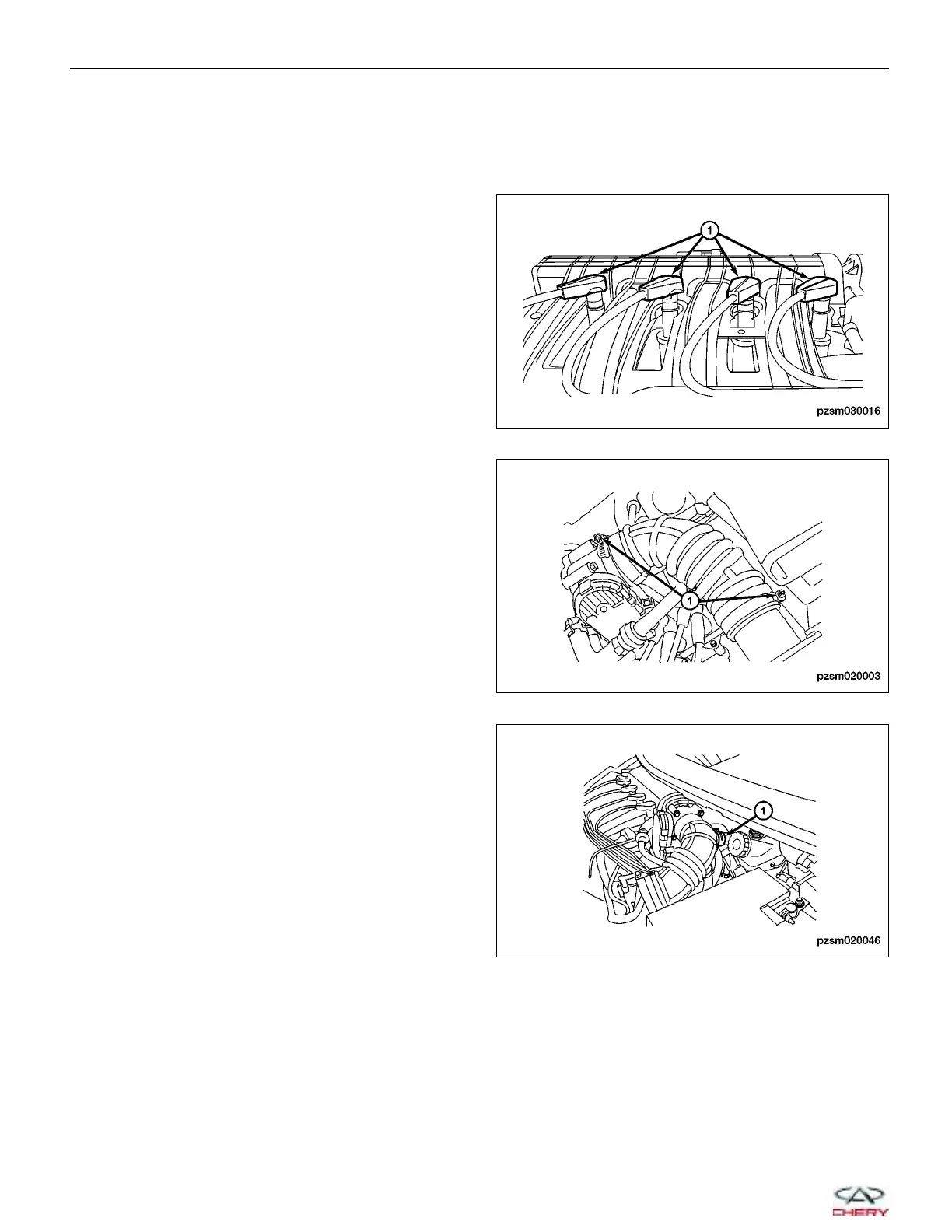

Intake Manifold

Removal & Installation

1. Disconnect the negative battery cable.

2. Remove the four spark plug wires (1) and set them

aside.

3. Remove the clamps (1) between the intake mani-

fold and the air cleaner housing.

4. Remove the PCV return hose clamp (1) on the

intake manifold hose.

5. Remove the air intake hose.

ON-VEHICLE SERVICE

PZSM030016

PZSM020003

PZSM020046

02–46

Chery Automobile Co., Ltd.
