Exhaust Manifold
Removal & Installation

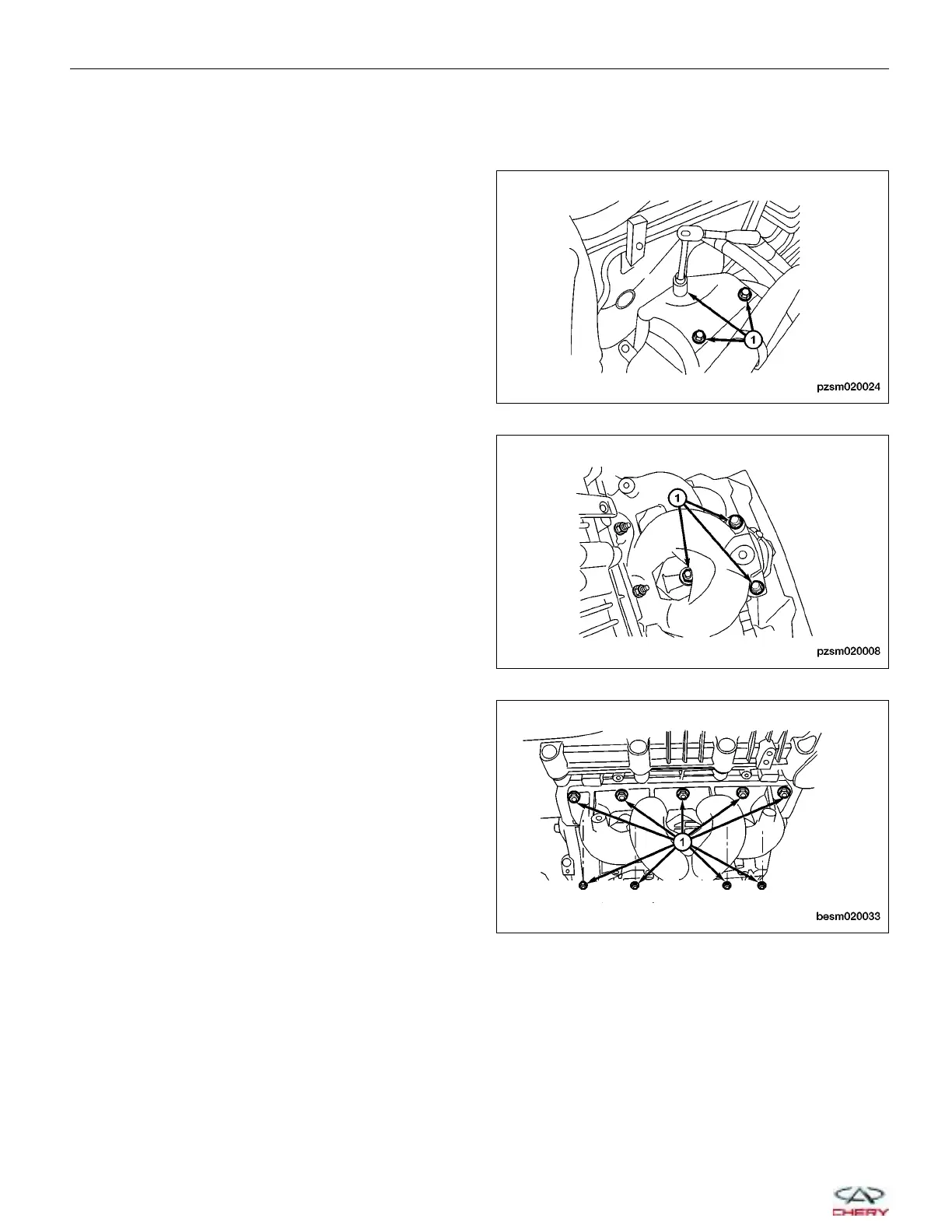

1. Remove the three bolts (1) attaching the exhaust
manifold heat shield.
(Tighten: Exhaust manifold heat shield bolts to
10 ± 5 N·m)
2. Remove the exhaust manifold heat shield.
3. Remove the three bolts (1) securing the exhaust
manifold to the catalytic converter assembly.
(Tighten: Exhaust manifold to the catalytic con-
verter bolts to 60 ± 5 N·m)
4. Disconnect the catalytic converter assembly from
the manifold.
5. Remove the ten exhaust manifold nuts (1).
(Tighten: Exhaust manifold nuts to 20 ± 5 N·m)
