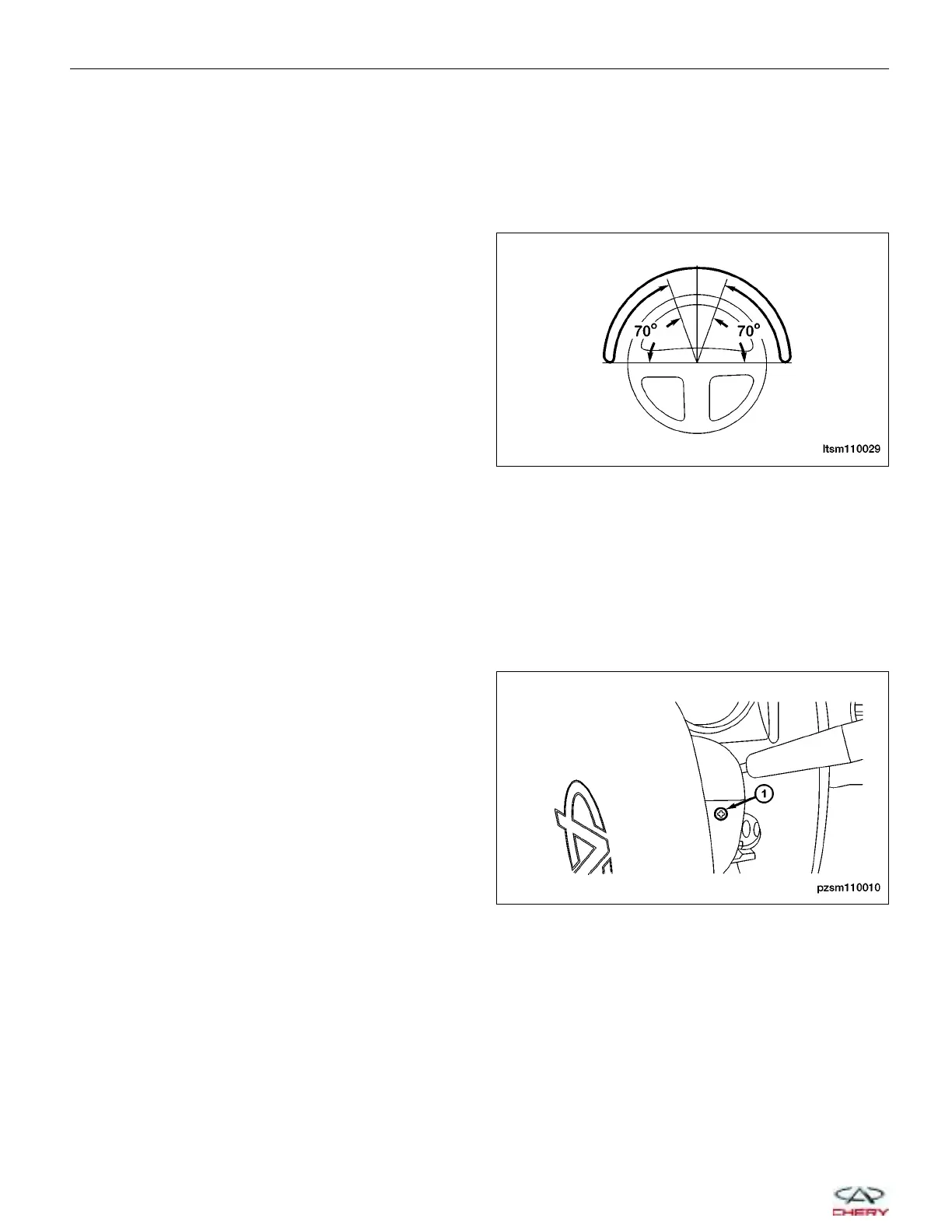

Steering Wheel Return to Center Inspection
NOTE :
This test should be performed during a road test.
• Make smooth turns and sharp turns. Check the driving 9sense9 to ensure there is no difference between the left
and right turns in terms of steering force and the steering wheel returning to center.
• When the vehicle speed is between 20 to 30 km/h turn the steering wheel 90° for 1 or 2 seconds and release
the steering wheel. If the steering wheel returns
over 70°, the steering wheel return function can be
considered good.
NOTE :
When rapidly turning the steering wheel, there will be a sense of “heavy”, however, this does not indicate a problem
with the steering system, this is due to insufficient steering fluid supplied to the steering fluid pump during idle speed.
Steering Column Shroud
Removal & Installation
1. Turn the steering wheel until it show the steering column upper shroud retaining bolt.
2. Remove the steering column upper shroud retain-
ing bolt (1).
(Tighten: Steering column upper shroud retaining
bolt to 4 ± 2 N·m)
ON-VEHICLE SERVICE
LTSM110029
PZSM110010
11–14
Chery Automobile Co., Ltd.
