Back Door Harness
L-001 W/2 Trunk Room Switch
L-002 B/2 High Mounted Stop Lamp
L-003 GR/4 Back Door Lock Assembly Rear Wiper Motor
L-100 GR/4 Back Door Lock Assembly To B-110
L-103 B1 To L-401
L-201 W/2 Ground
L-301 B/2 Rear Window Defogger
L-302 W/2 Rear Window Defogger
L-401 W/14 To B-110
L-501 - Ground

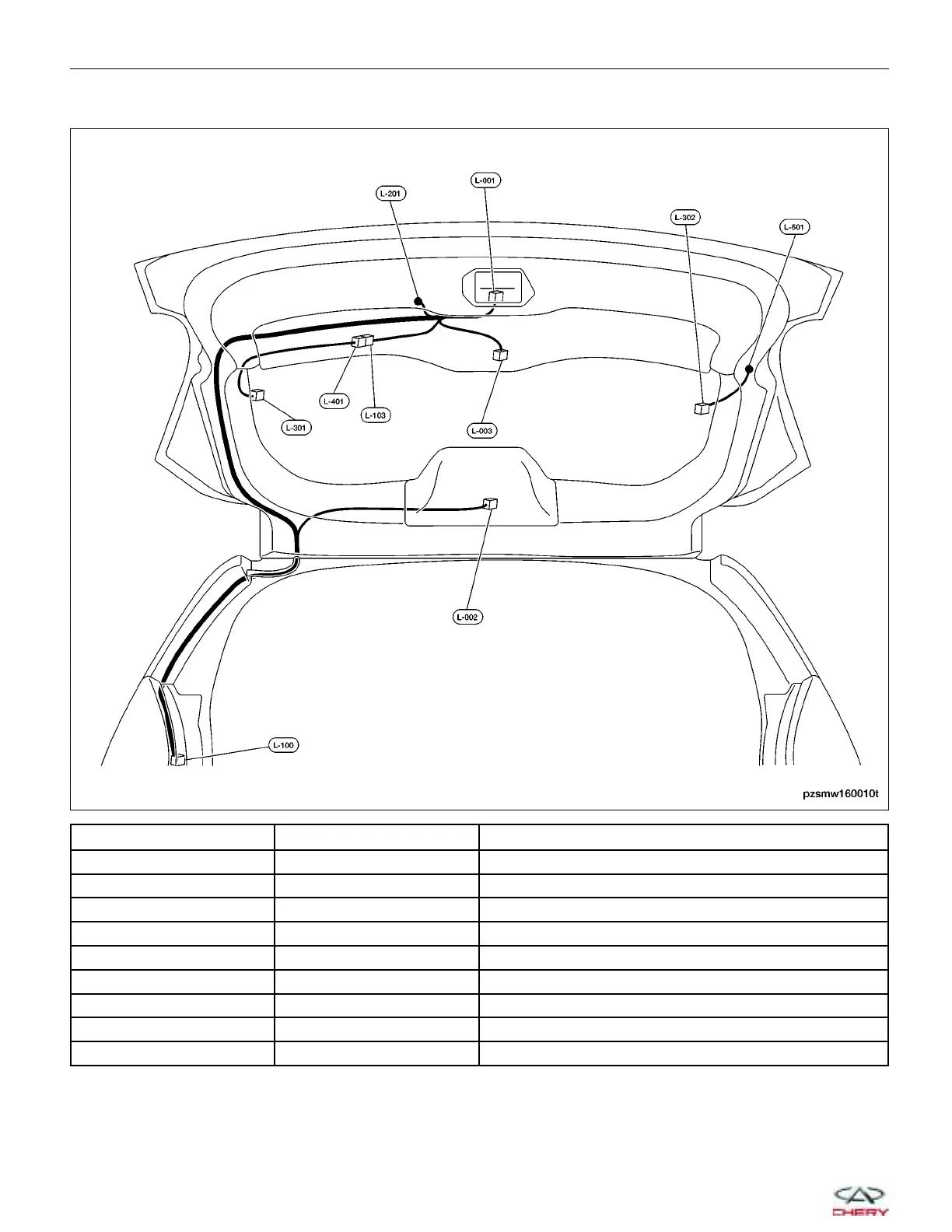

VEHICLE HARNESS ROUTING MAPS
PZSMW160010T
