GENERAL INFORMATION
Description
The suspension system incorporates a strut assembly that takes the place of the upper control arm and upper ball
joint. The strut carries out the function of a shock absorber and is encompassed by a coil spring. The strut assembly
supports the weight of the vehicle and is also the pivot point for the steering knuckle. This system uses a lower
control arm and ball joint for the lower pivot point of the steering knuckle.

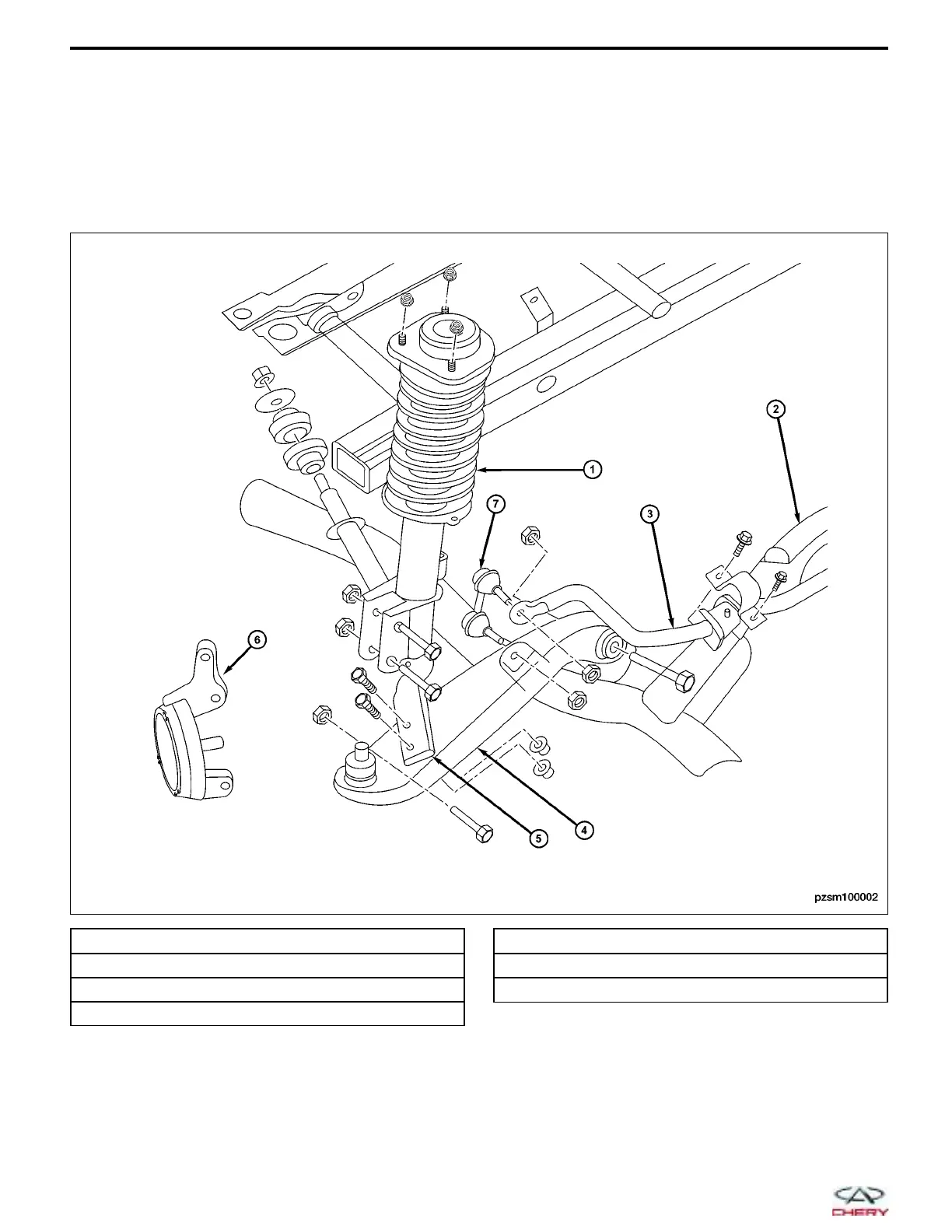

1 - Front Strut Assembly
2 - Front Sub-Frame
3 - Front Stabilizer Bar
4 - Front Lower Control Arm
5 - Front Strut Rod
6 - Front Steering Knuckle
7 - Front Stabilizer Bar Link
PZSM100002
