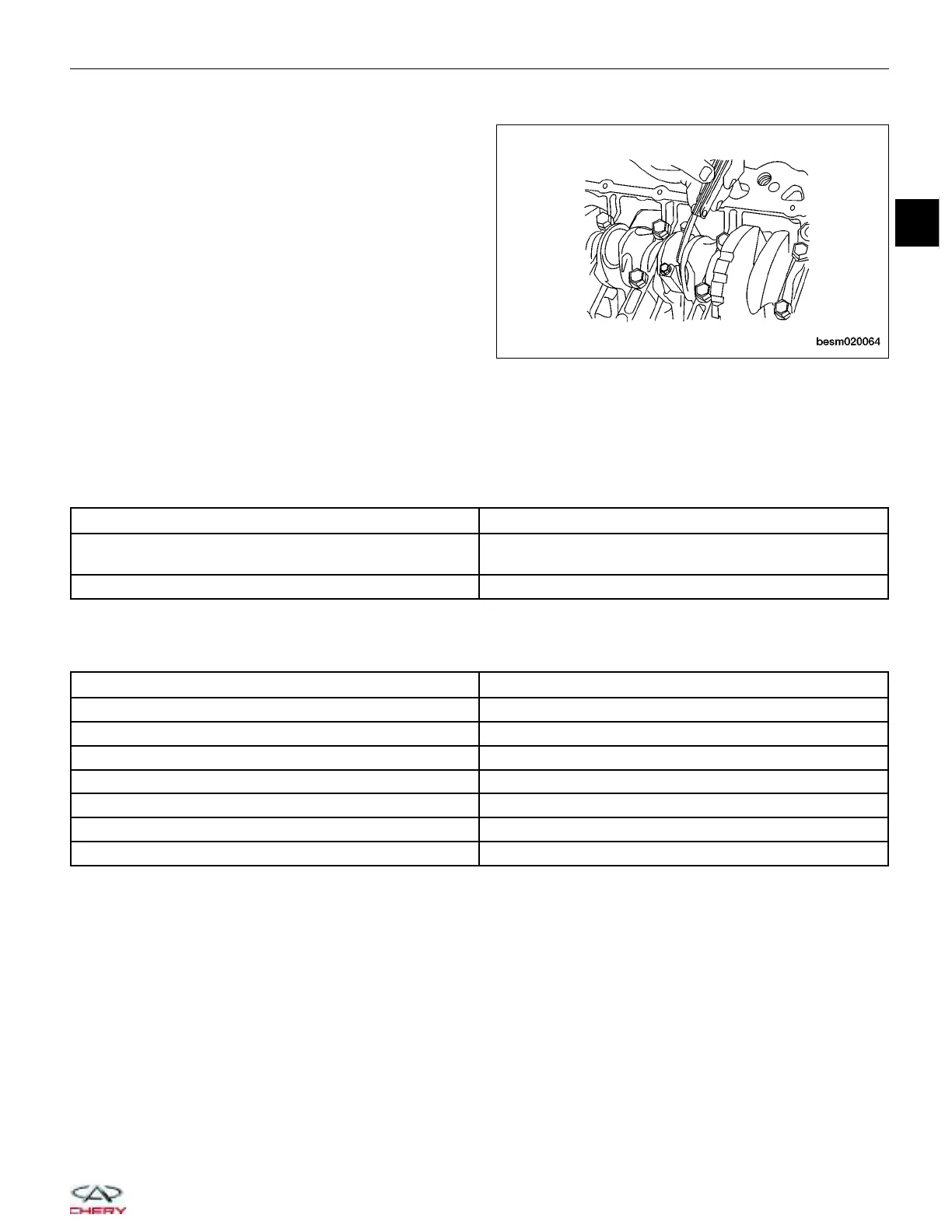

4. Using a feeler gauge, check connecting rod side clearance.
• Check axial clearance of connecting rod.
Crankshaft
Specifications
Torque Specifications
DESCRIPTION TORQUE (N·m)
Main Bearing Cap Bolts
1st Step: Tighten the bolt to 45 ± 5 N·m
2nd Step: Tighten the bolt an additional 180 ± 10°
Lower Cylinder Block Bolts 25 ± 5
Clearance Specifications
DESCRIPTION SPECIFICATION (mm)
Diameter of Crankshaft Main Journals 46.01
Diameter of Crankshaft Rod Journals 44.485 - 44.495
Out-of-Round Maximum of Crankshaft Main Journals 0.008
Axial Clearance of Crankshaft 0.02 - 0.30
Radial Clearance of Crankshaft 0.0035 - 0.034
Coaxality Crankshaft Main Journal 0.05
Thrust Washer Thickness 2.4 - 2.405
Disassembly
1. Remove the front crankshaft oil seal (See Front Crankshaft Oil Seal Removal & Installation in Section 02
Engine).
2. Remove the rear crankshaft oil seal (See Rear Crankshaft Oil Seal Removal & Installation in Section 02 Engine).
3. Remove the pistons with connecting rod assemblies.
ENGINE UNIT REPAIR
BESM020064
02
02–63
Chery Automobile Co., Ltd.
