Cooling Fan Inspection
1. Using the following table, apply battery voltage to the specified connector terminals.
2. Verify that the fan motor operates smoothly when voltage is applied.
3. If the test results are not as specified, replace the fan motor.

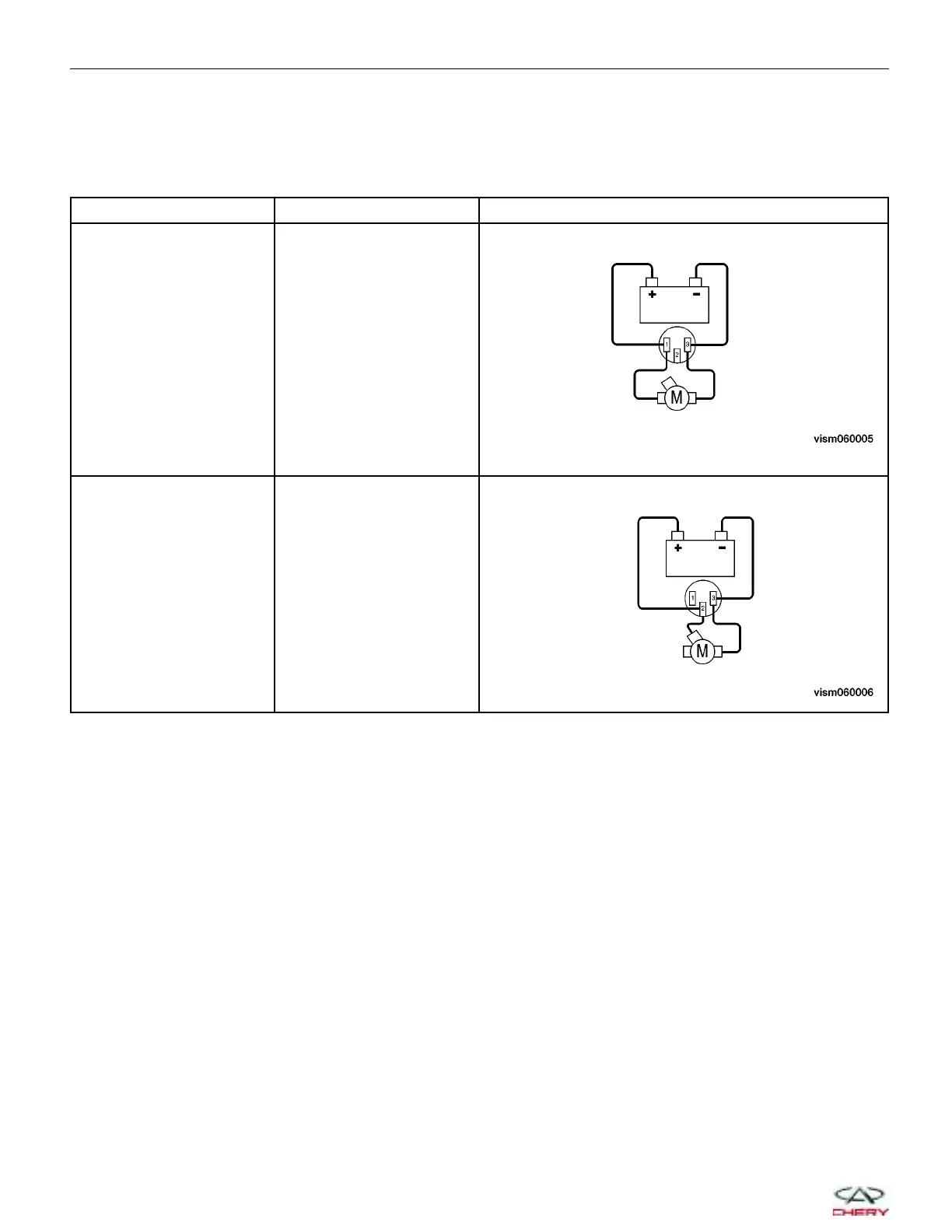

MEASURING CONDITION OPERATION INSPECTION DIAGRAM
Battery positive (+) to
terminal – 1
Battery negative (-) to
terminal – 3
Turns smoothly with high
speed
Battery positive (+) to
terminal – 2
Battery negative (-) to
terminal – 3
Turns smoothly with low
speed
ON-VEHICLE SERVICE
06–14
