24. Remove the window regulator and guide rail
assembly.
25. Installation is in the reverse order of removal.

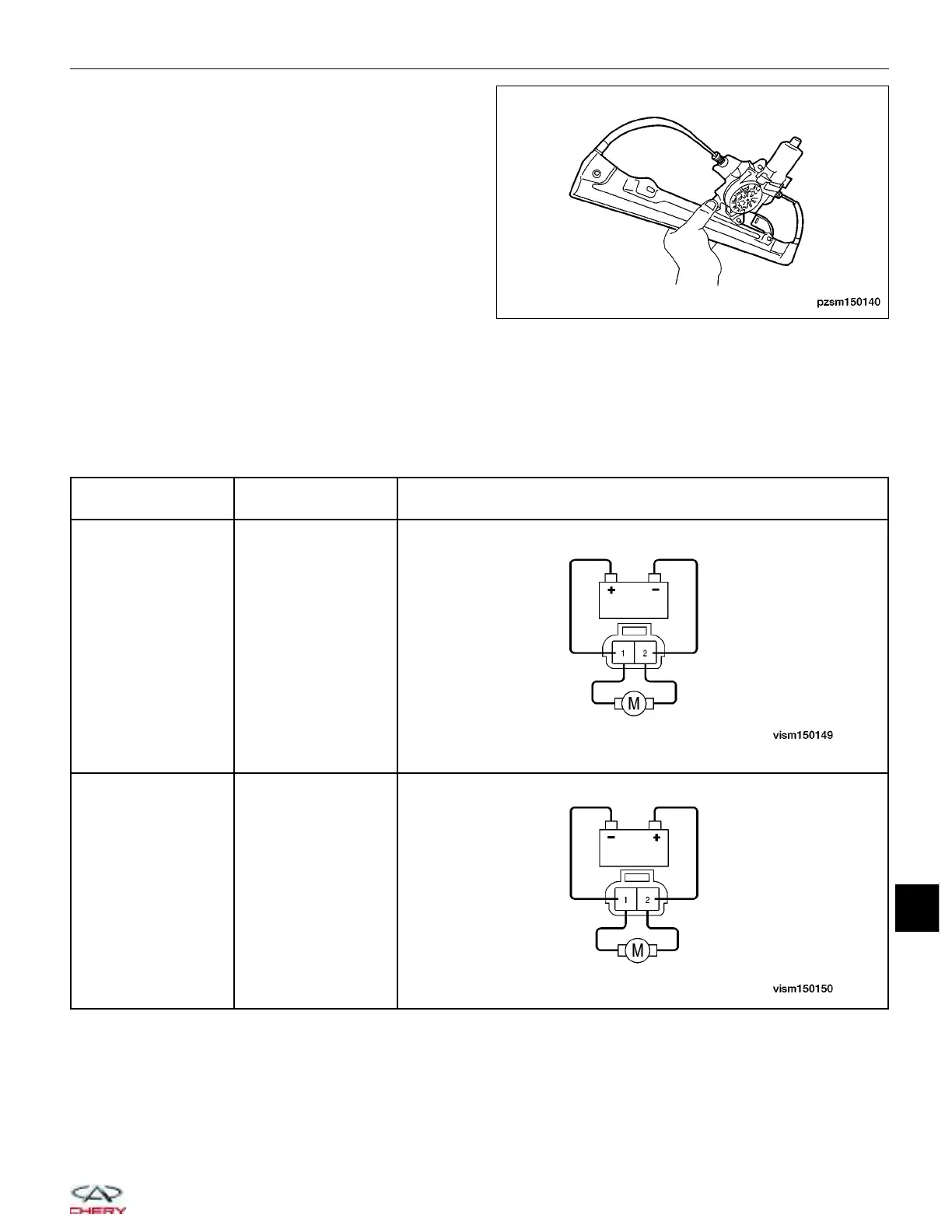

Power Window Motor Inspection
1. Using the following table, apply battery voltage to the specified connector terminals.
2. Verify that the motor operates smoothly when voltage is applied in each direction.
3. If the test results are not as specified, replace the motor.
MEASURING
CONDITION
OPERATIONAL
DIRECTION
INSPECTION DIAGRAM
Battery positive (+)
to terminal – 1
Battery negative (-)
to terminal – 2
Down
Battery positive (+)
to terminal – 2
Battery negative (-)
to terminal – 1
Up
POWER WINDOWS
PZSM150140
15
15–113
