ON-VEHICLE SERVICE

Trailing Arm

Removal & Installation

1. Raise and support the vehicle.

2. Remove the wheel mounting nuts and the wheel assembly.

(Tighten: Wheel mounting nuts to 110 N·m)

3. Remove the rear coil spring. (See Rear Coil Spring Removal & Installation in Section 10 Suspension).

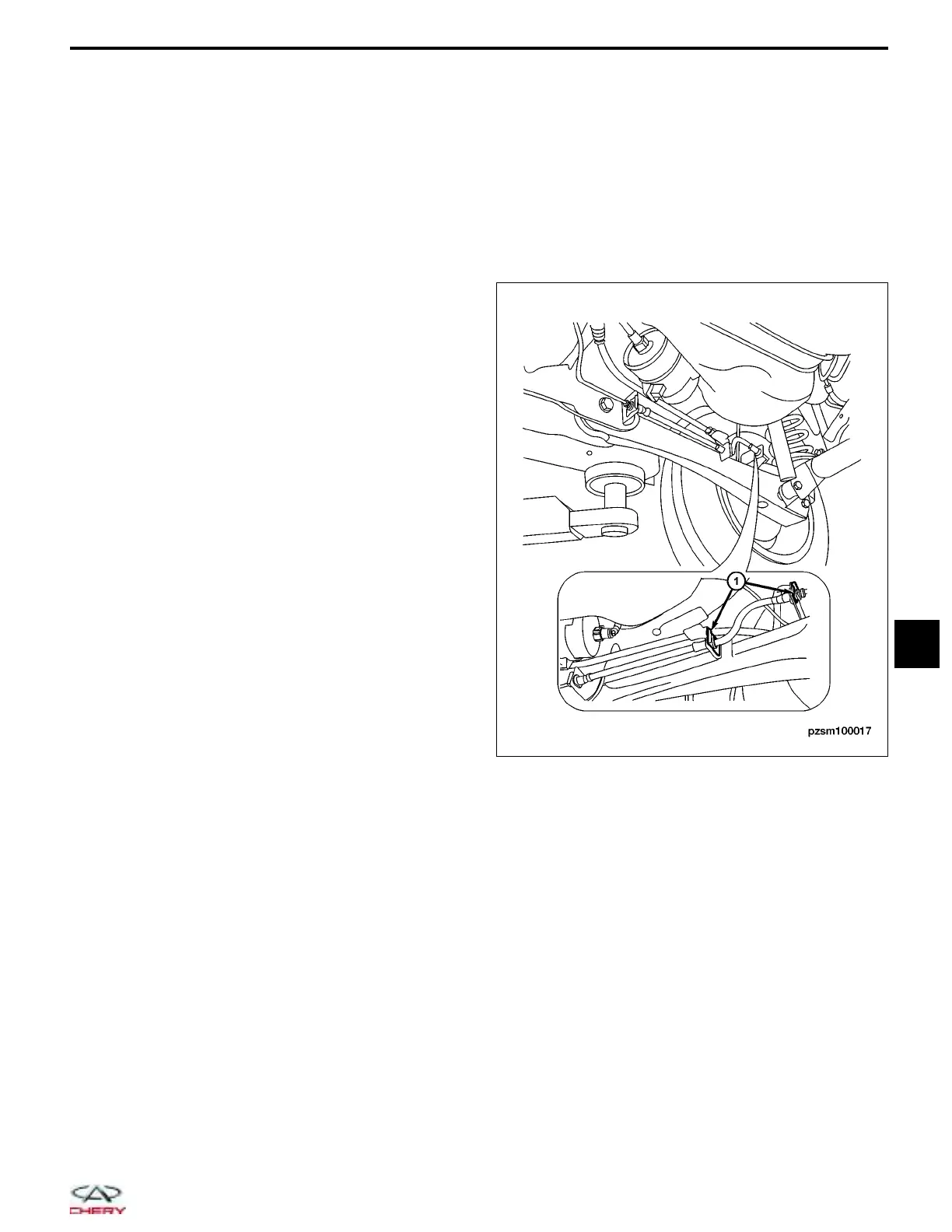

4. Remove the two brake oil hose clamps (1) on the

rear trailing arm.

PZSM100017

10–31

Chery Automobile Co., Ltd.
