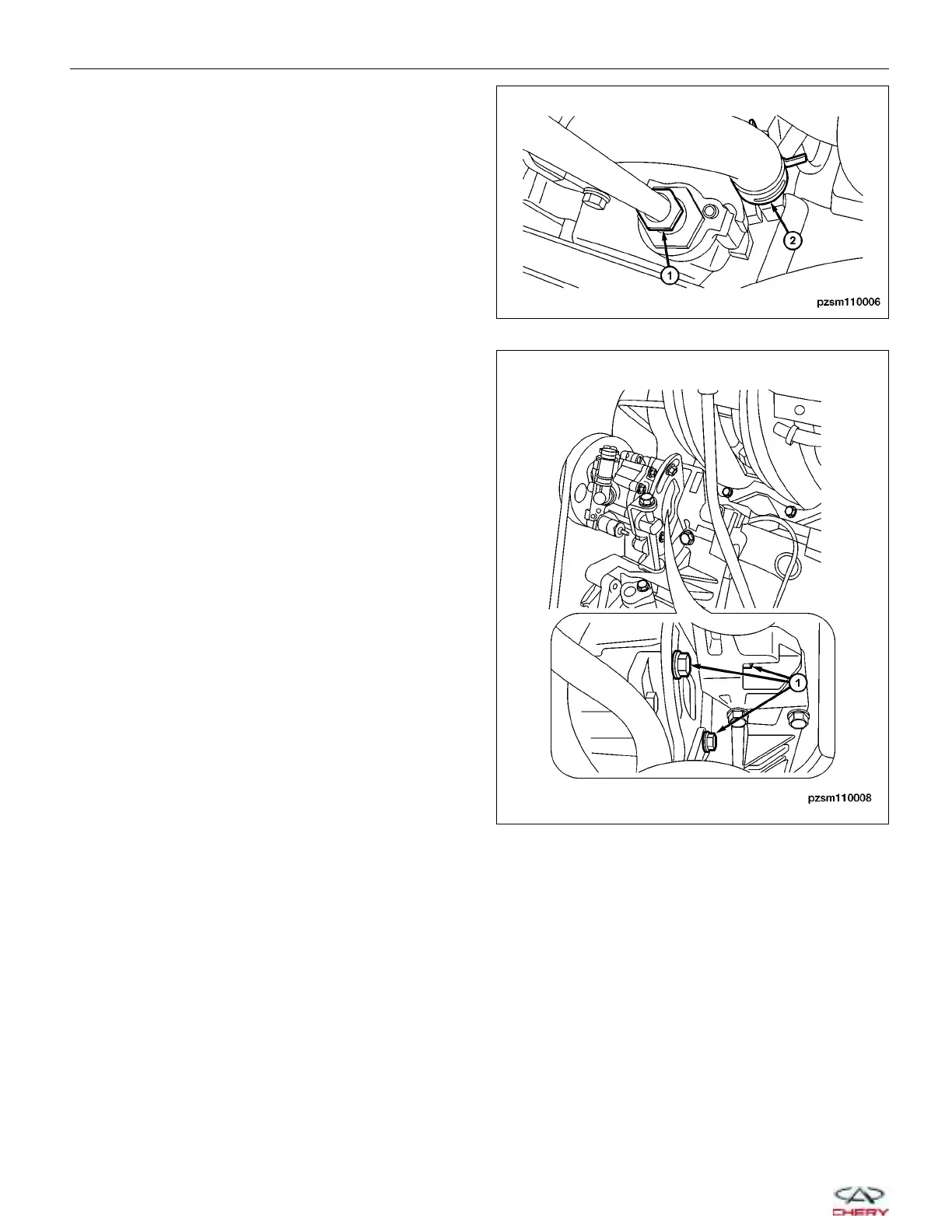

9. Remove the power steering pump inlet hose clamp
(2), and then remove the pump inlet hose.
Remove the outlet line nut (1) from the pump outlet
pipe.
(Tighten: Steering pump outlet pipe bolt to 45 ± 5
N·m)
10. Remove the three bolts (1) from the power steering
pump.
(Tighten: Power steering pump bolts to 20 ± 5 N·m)
11. Remove the steering pump from the engine bracket.
12. Installation is in the reverse order of removal.
Installation Notes:
• Fill the power steering fluid reservoir to the proper level.
• Check the system for leaks.
Power Steering Fluid Reservoir
Removal & Installation
1. Siphon as much fluid as possible from the power steering fluid reservoir.
ON-VEHICLE SERVICE
PZSM110006
PZSM110008
11–42
Chery Automobile Co., Ltd.
