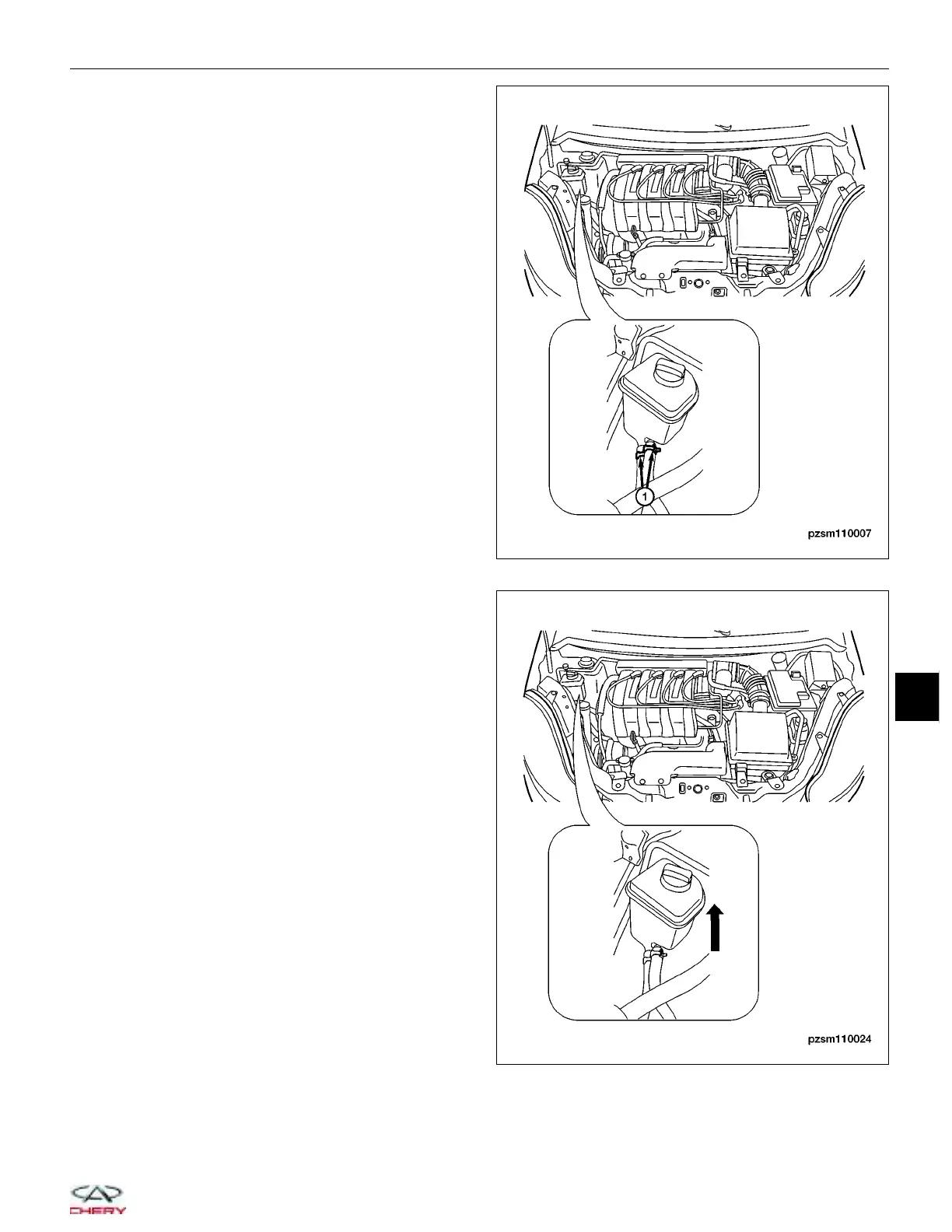

2. Remove the hose clamps (1) securing the return

hose and the supply hose to the power steering

fluid reservoir fitting.

3. Slide the hose off the end of the reservoir fitting.

4. Installation is in the reverse order of removal.

Installation Notes:

• Fill the power steering reservoir to the proper level.

• Check the system for leaks.
