GENERAL INFORMATION
Description
The differential includes the differential side gears and the shaft mounted differential pinion gears. Direct contact
between the gears and the differential case is prevented by the differential side gear thrust washers installed under
the gears. The differential pinion shaft is held in position by a differential pinion shaft lock pin that extends through
the end of the differential pinion shaft and the differential case.
The differential assembly consists of the following components:
• Differential case (part of the final drive carrier)
• 2 pinion gears supported by a pinion shaft
• 2 side gears supported by the differential case and halfshafts

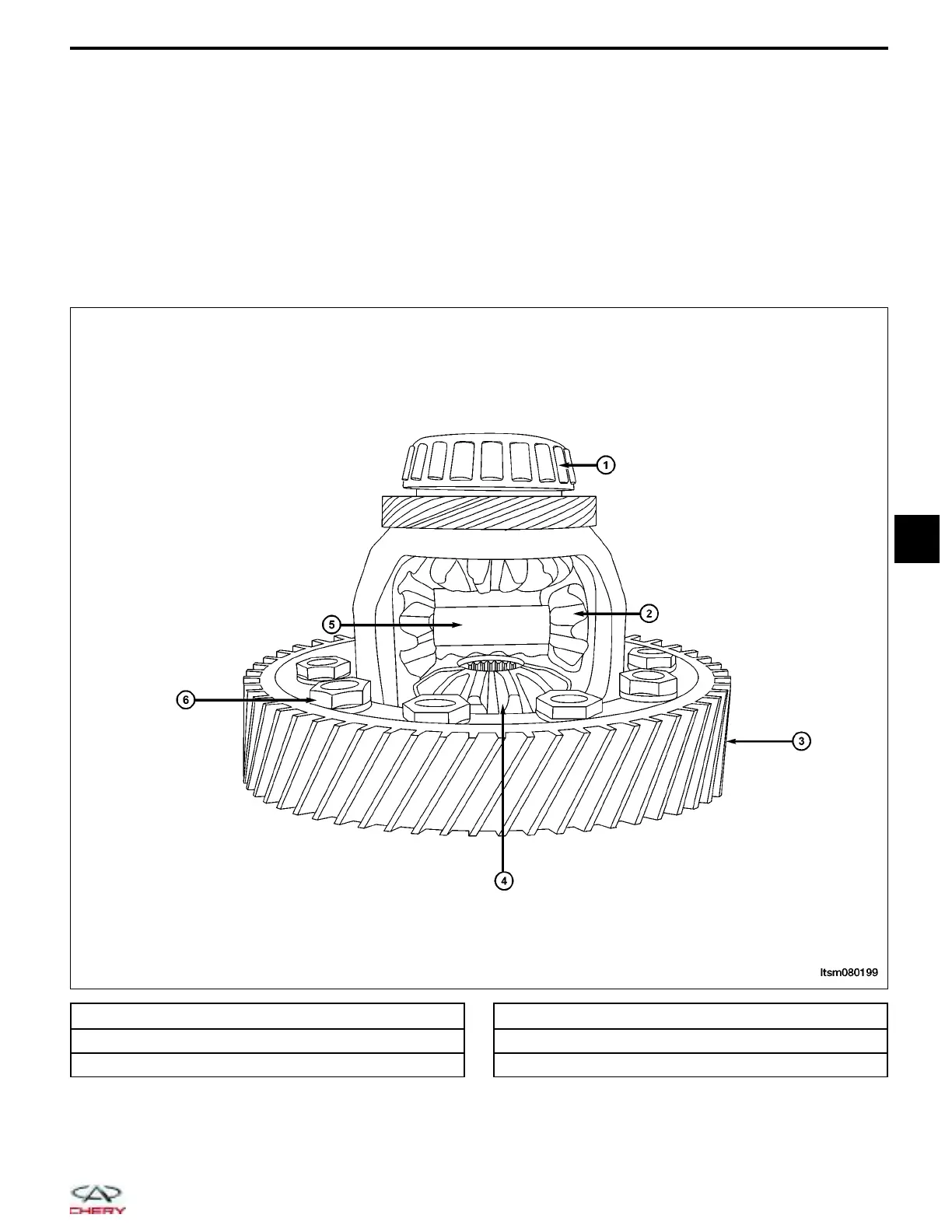

1 – Differential Bearing
2 – Planetary Gear
3 – Final Drive Driven Gear
4 – Side Gear
5 – Planetary Gear Shaft
6 – Bolts - Final Drive Driven Gear and Differential Housing
LTSM080199
08
08–37
Chery Automobile Co., Ltd.
