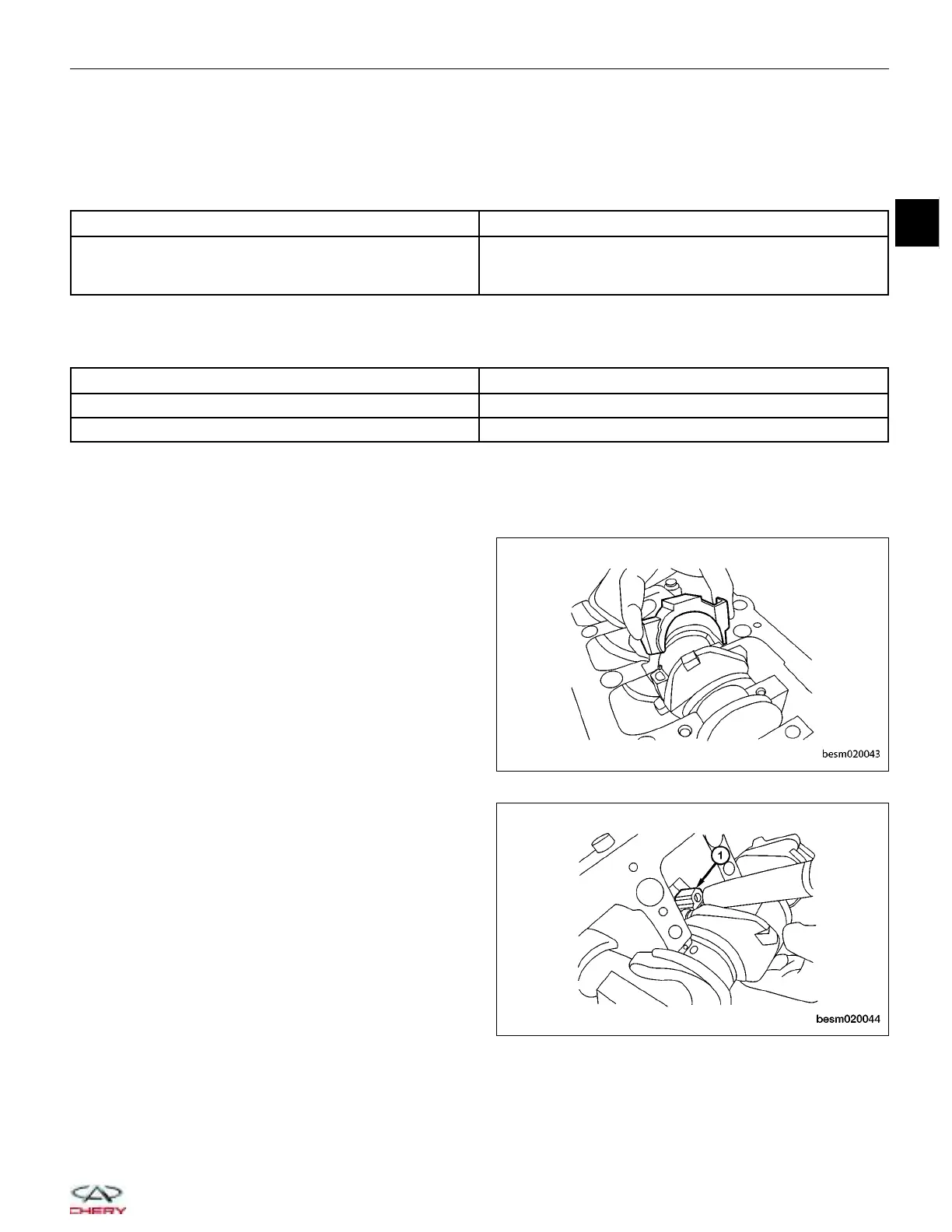

Connecting Rods
Specifications
Torque Specifications
DESCRIPTION TORQUE (N·m)
Connecting Rod Bolts
1st Step: Tighten bolts to 25 ± 3 N·m
2nd Step: Tighten the connecting rod bolts an additional
90 ± 5°
Clearance Specifications
DESCRIPTION SPECIFICATION
Connecting Rod Radial Clearance 0.023 - 0.058 mm
Connecting Rod Axial Clearance 0.15 - 0.4 mm
Disassembly
1. Remove the connecting rod cap bolts.
2. Remove the connecting rod bearing cap.
3. Using a hammer handle or similar tool, push the
piston and connecting rod assembly (1) out
through the cylinder head side of the engine block.
NOTE: Before removing the piston and connecting rod assembly, check the connecting rod side clearance.
ENGINE UNIT REPAIR
BESM020043
BESM020044
02
02–61
Chery Automobile Co., Ltd.
