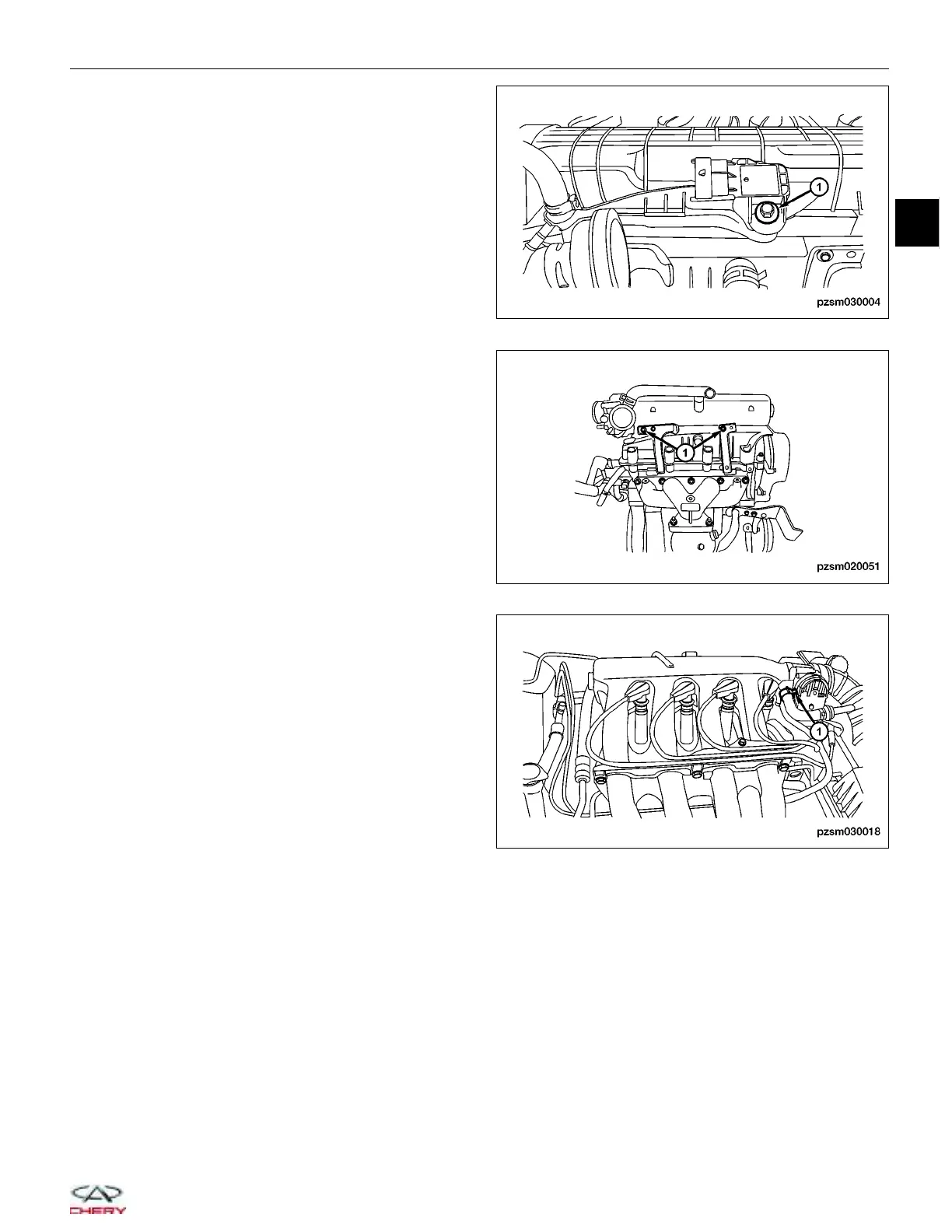

6. Disconnect the manifold air pressure (MAP) sensor
electrical connector.
7. Remove the MAP sensor retaining bolt (1), and
then remove the MAP sensor.
8. Remove the intake manifold bracket retaining bolts
(1).
9. Remove the fuel vapor return hose (1) from the
throttle body.
ON-VEHICLE SERVICE
PZSM030004
PZSM020051
PZSM030018
02
02–47
Chery Automobile Co., Ltd.
