GENERAL INFORMATION
Description

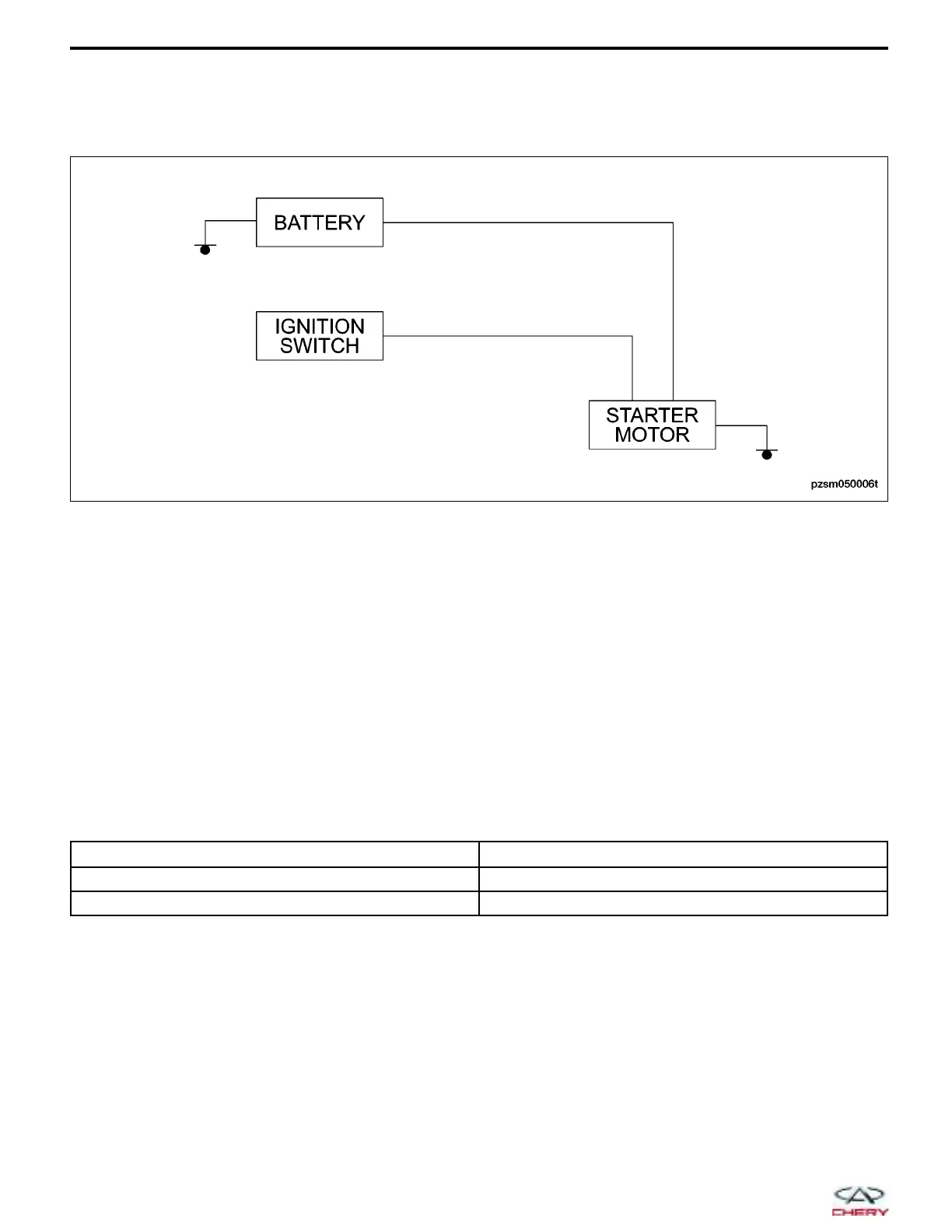

The starting system consists of:
• Starter motor (including an integral starter solenoid)
• Battery
• Battery cables
• Ignition switch and key lock cylinder
• Wire harnesses and connections
Operation
The battery, starting and charging systems operate in conjunction with one another, and must be tested as a com-
plete system. For correct operation of starting/charging systems, all components used in these 3 systems must per-
form within specifications. When attempting to diagnose any of these systems, it is important that you keep their
interdependency in mind. These components form two separate circuits. A high amperage circuit that feeds the
starter motor up to 150 amps, and a control circuit that operates on less than 20 amps.
Specifications
Torque Specifications
DESCRIPTION TORQUE (N·m)
Starter Mounting Bolts 30
Battery Positive Cable Nut 10
