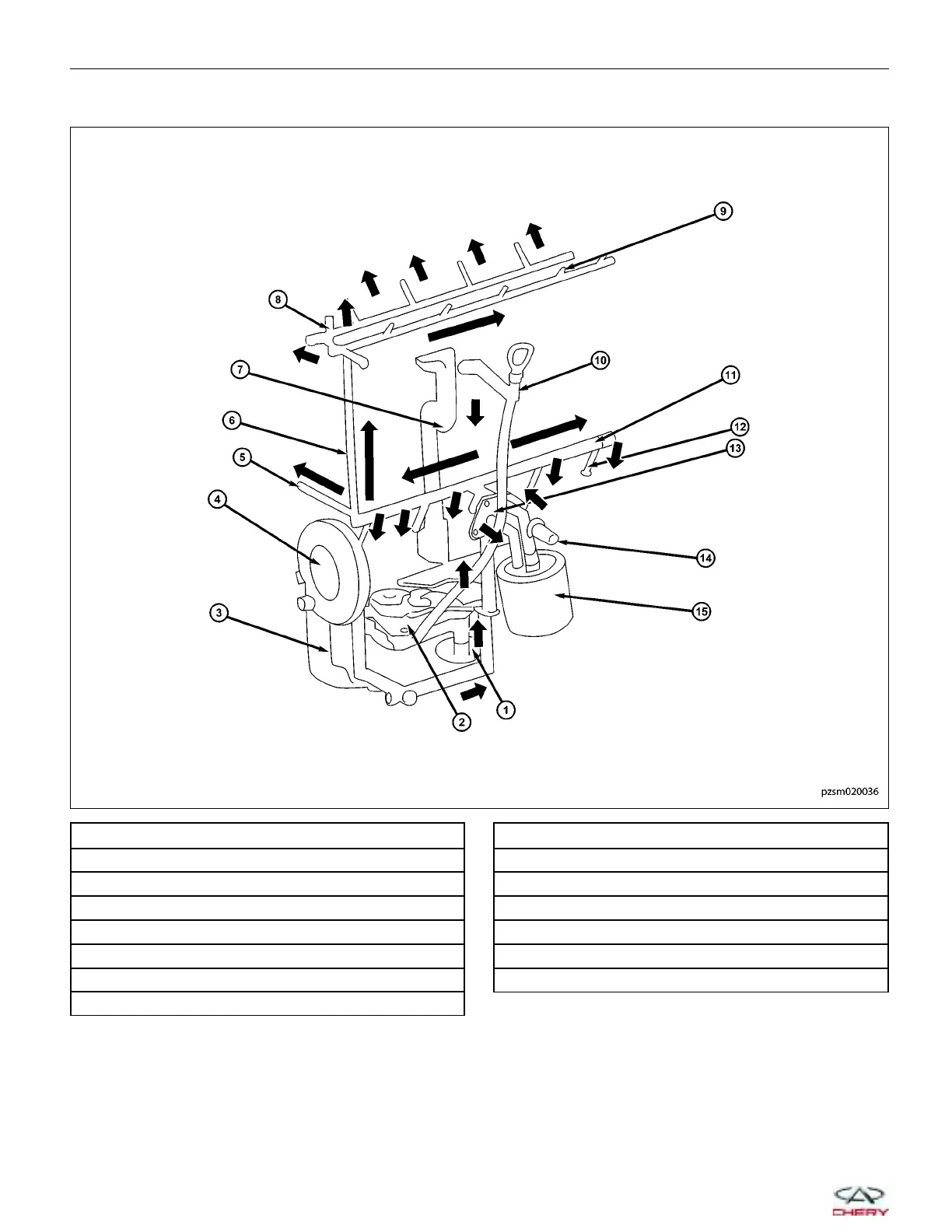

Engine Oil Flow Diagram
1 – Oil Pump Strainer
2 – Baffle Plate
3 – Oil Pan
4 – Oil Pump
5 – Turbocharger Inlet Oil Passage (if equipped)
6 – To Cylinder Head
7 – Oil Return Passage
8 – To Front Bearing Cap
9 – To Middle Bearing Cap
10 – Oil Dipstick
11 – To Crankcase
12 – Crankcase Pipe
13 – Oil Filter Bracket
14 – Oil Pressure Switch
15 – Oil Filter
