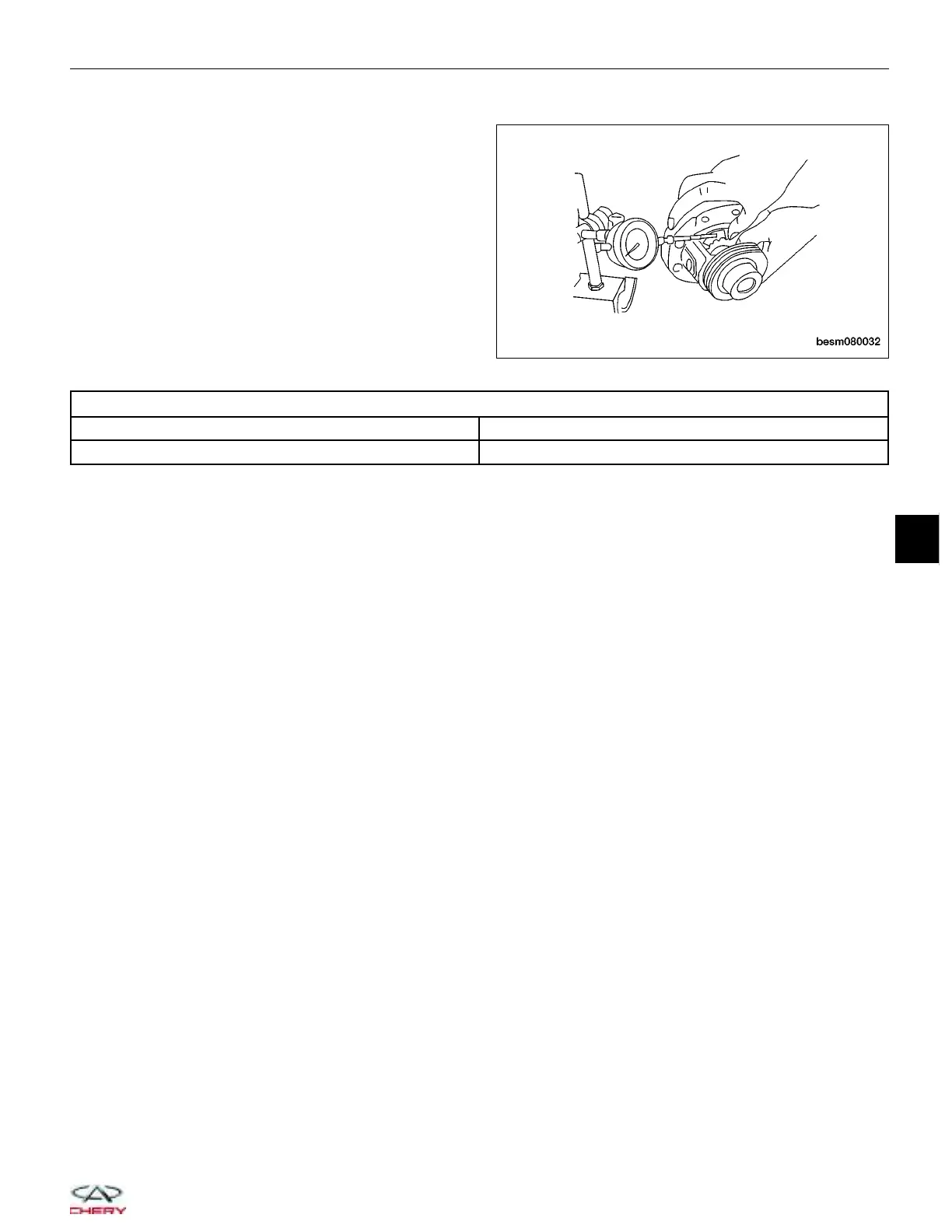

• Insert the planetary gear shaft.
• Measure the clearance between the side gear and
planetary gear.
NOTE :
Standard value: 0.025-0.150 mm
DIFFERENTIAL SIDE GEAR CLEARANCE
Standard 0.025 - 0.150 mm
Adjusting Washer 0.93 - 1.00 mm
• If any measured clearance is not within specifications, select and install the appropriate adjusting washer(s) and
then measure the clearances again.
NOTE :
Adjust the side clearance equally on both sides.
DIFFERENTIAL UNIT REPAIR
BESM080032
08
08–41
Chery Automobile Co., Ltd.
