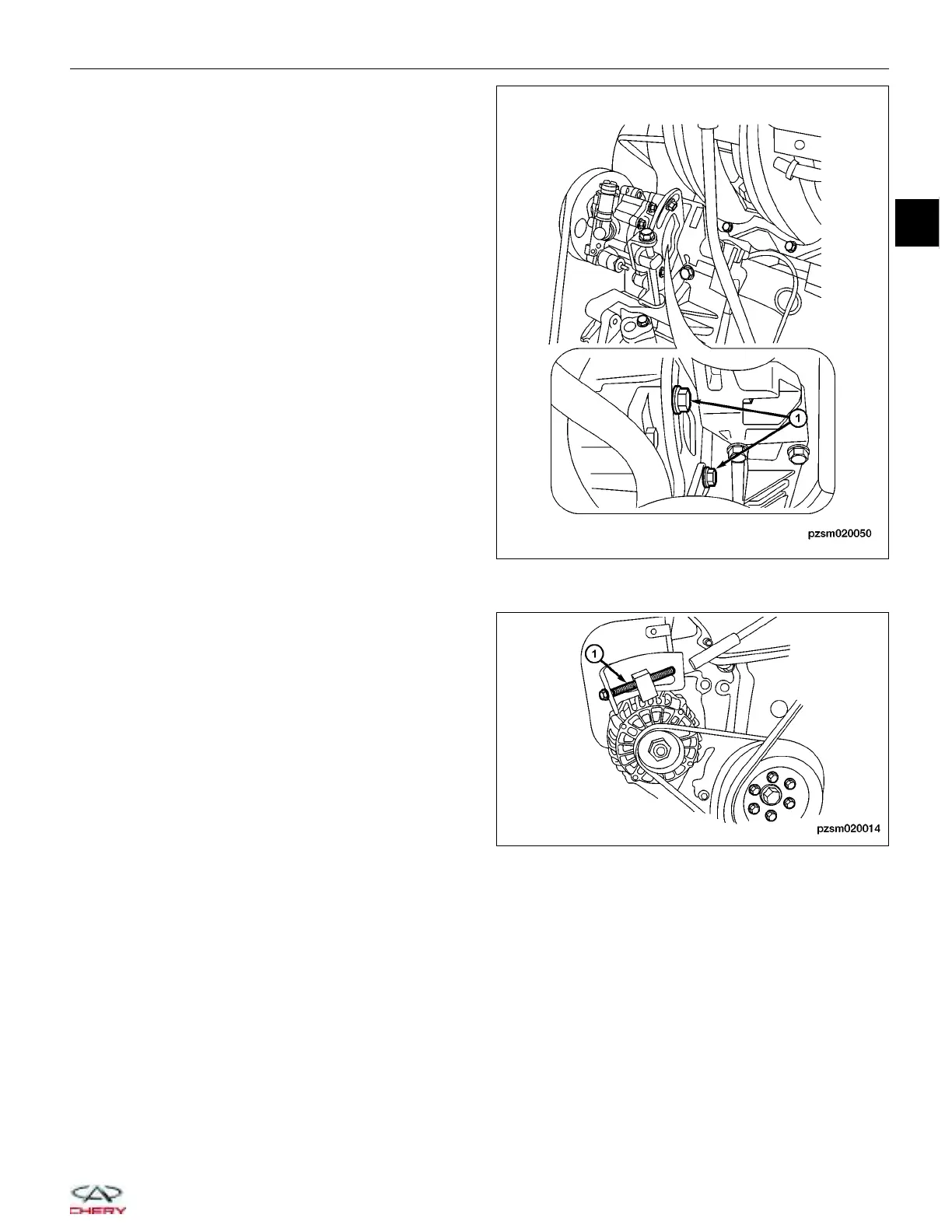

2. Loosen the two bolts (1) on the steering pump
bracket.
3. Remove the A/C compressor belt.
4. Loosen the generator adjustment bolt (1).
5. Remove the generator belt.
6. Installation is in the reverse order of removal.
Installation Notes:
• Use a deflection gauge and adjust the drive belt tension to 95 N·m with a limit deflection of 5 mm.
NOTE :
Measure the drive belt deflection in the middle of the drive belt.
ON-VEHICLE SERVICE
PZSM020050
PZSM020014
02
02–17
Chery Automobile Co., Ltd.
