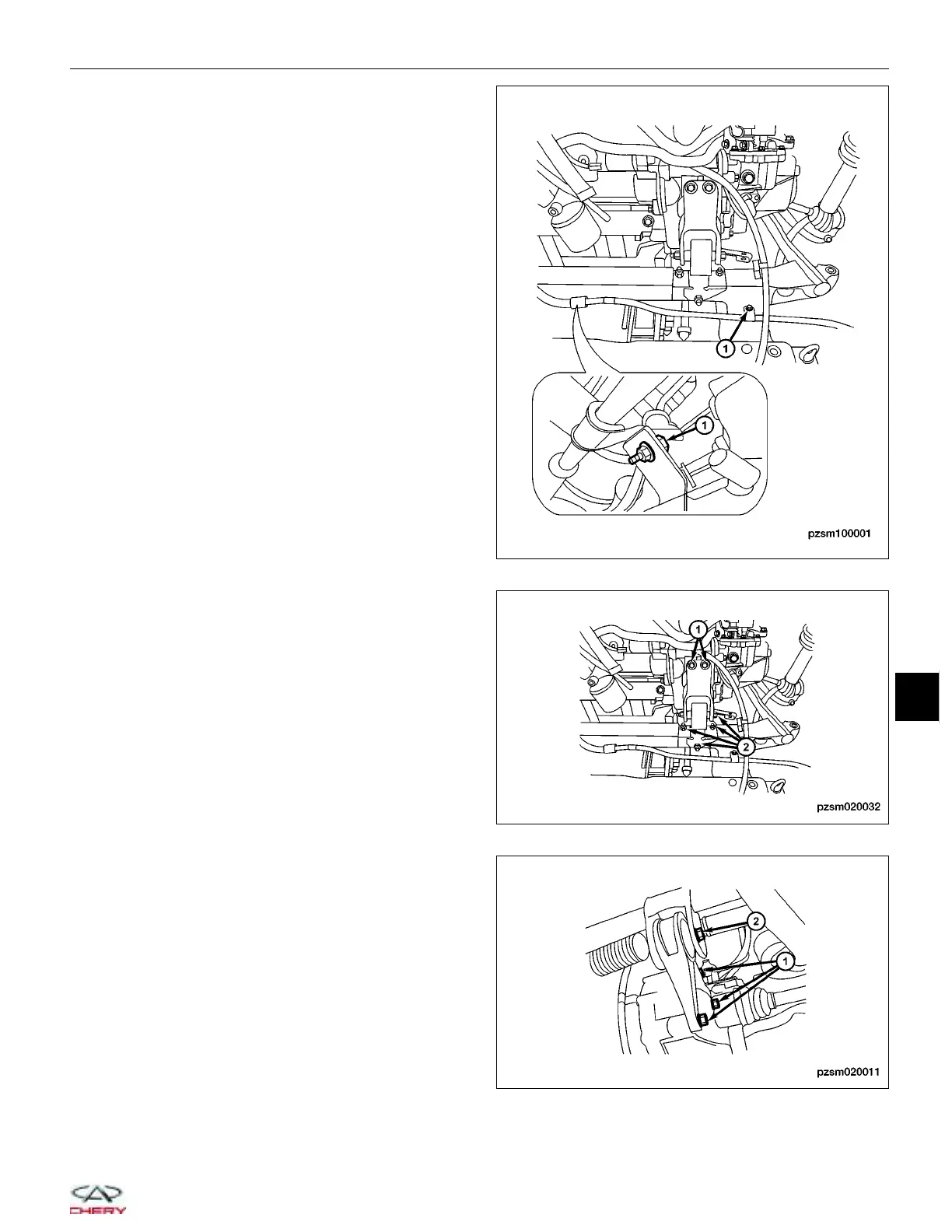

18. Remove the A/C pipe bracket retaining bolt (1) on
the sub-frame (See Suction Line Removal & Instal-
lation in Section 13 Heating & Air Conditioning).
19. Remove the front engine mount bolts (1) and the
front engine mount bracket bolts (2).
(Tighten: Front engine mount bolt to 80 ± 5 N·m)
20. Remove the rear engine mount bolts (1) and the
rear engine mount bracket bolt (2).
(Tighten: Rear engine mount bolts to 60 ± 5 N·m)
ON-VEHICLE SERVICE
PZSM100001
PZSM020032
PZSM020011
11
11–27
Chery Automobile Co., Ltd.
