Chery A1 2009 - Page 672

To Next Page

To Previous Page

Electrical Schematics

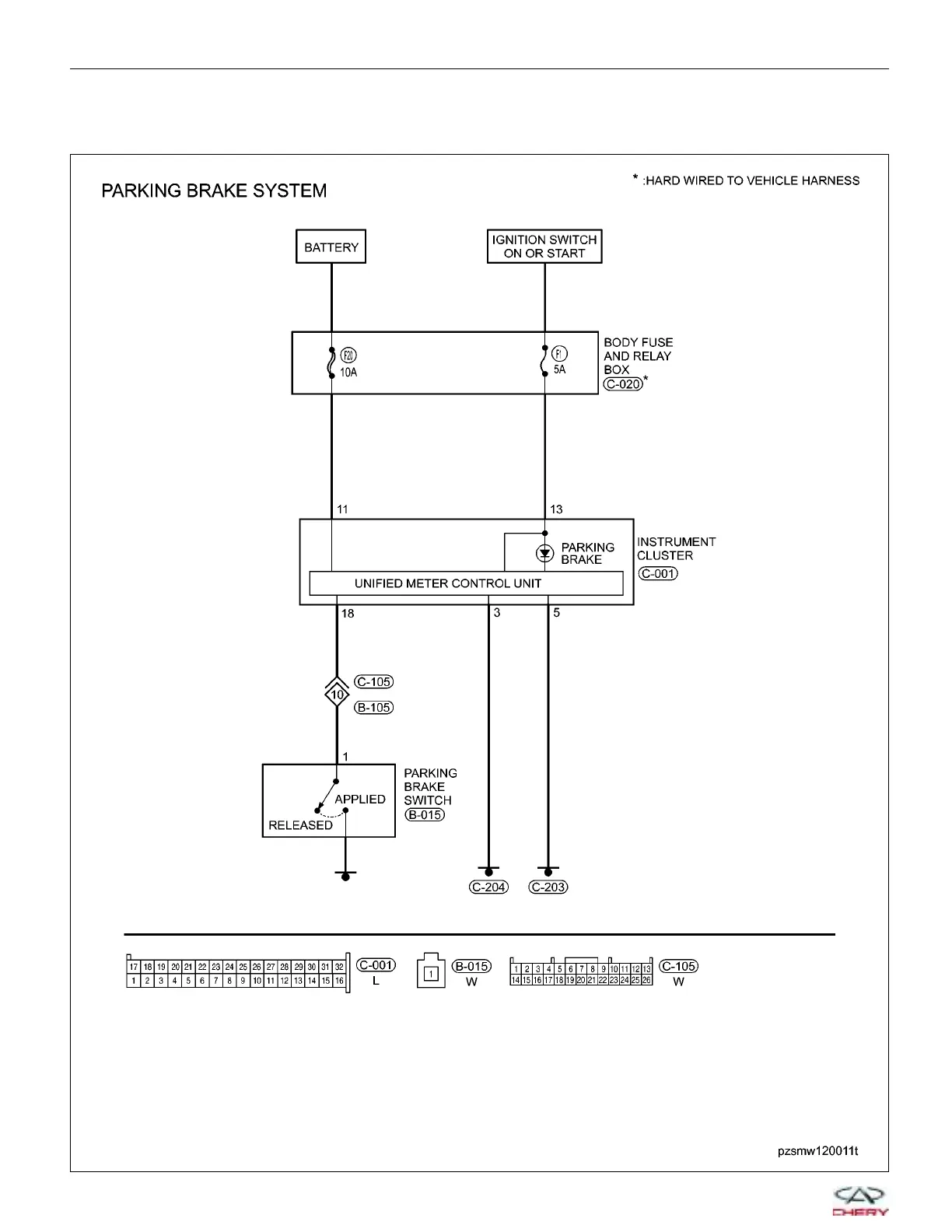

Parking Brake System (Page 1 of 1)

GENERAL INFORMATION

PZSMW120011T

12–82

Chery Automobile Co., Ltd.
