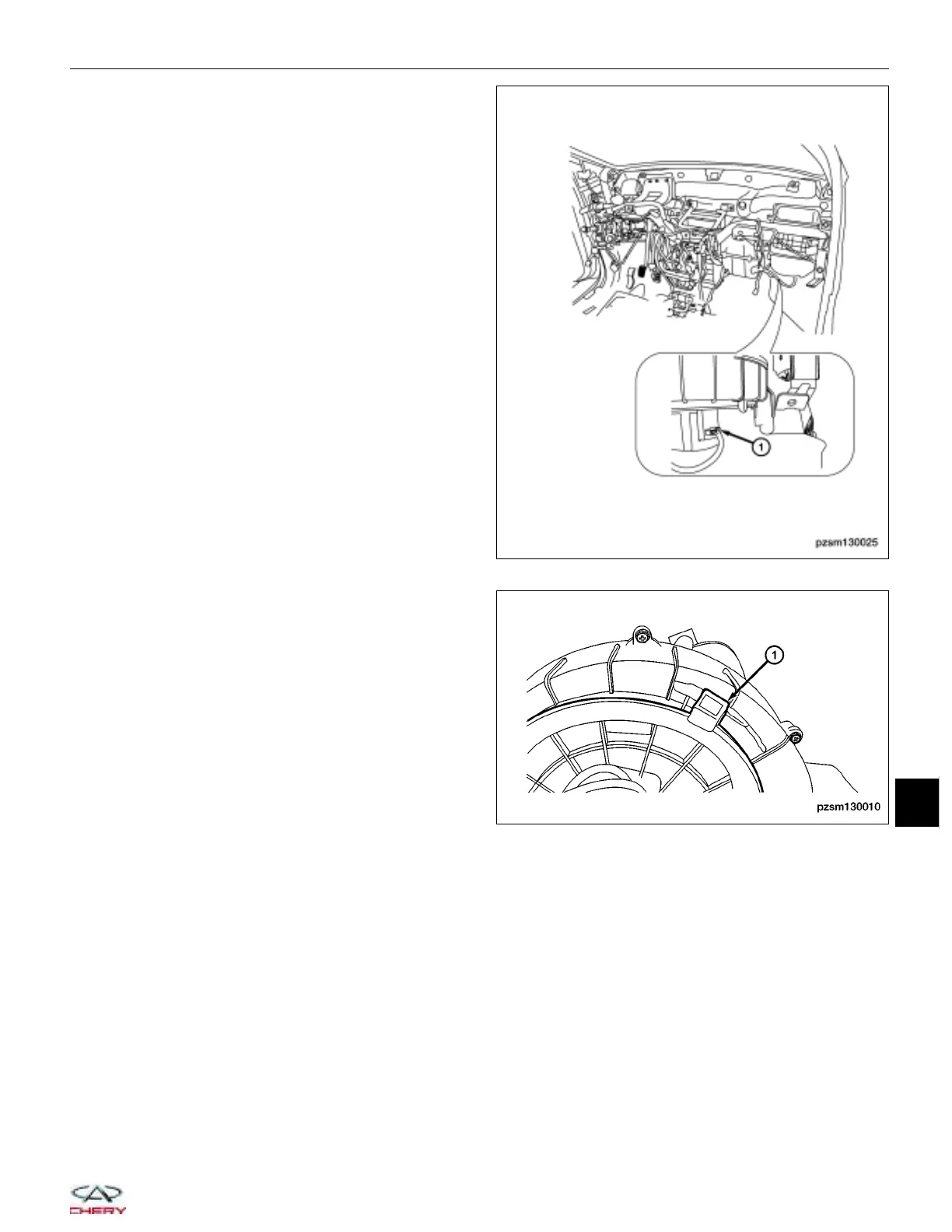

2. Disconnect the blower motor electrical connector

(1) from the bottom of the left side of the instru-

ment panel.

3. Push down on the clip (1) and remove the blower

assembly clockwise.

4. Remove the blower motor.

5. Installation is in the reverse order of removal.

ON-VEHICLE SERVICE

PZSM130025

PZSM130010

13–27
