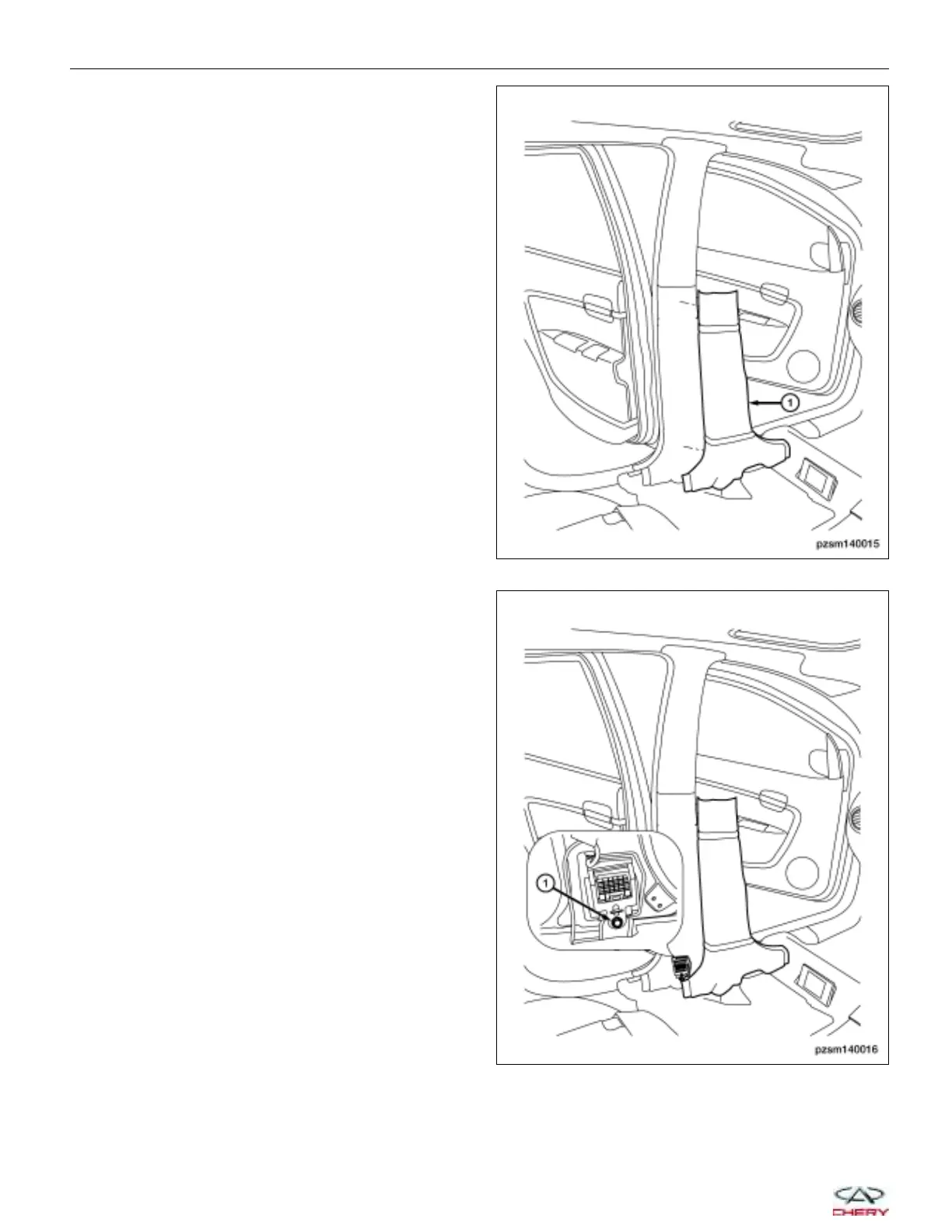

3. Using a trim stick, remove the B-pillar lower trim
panel (1).
4. Remove the front seat belt pre-tensioner retaining
bolt (1).
(Tighten: Front seat belt retaining bolt to 50 N·m)
5. Remove the front seat belt and pre-tensioner.
6. Installation is in the reverse order of removal.
ON-VEHICLE SERVICE
PZSM140015
PZSM140016
14–42
Chery Automobile Co., Ltd.
