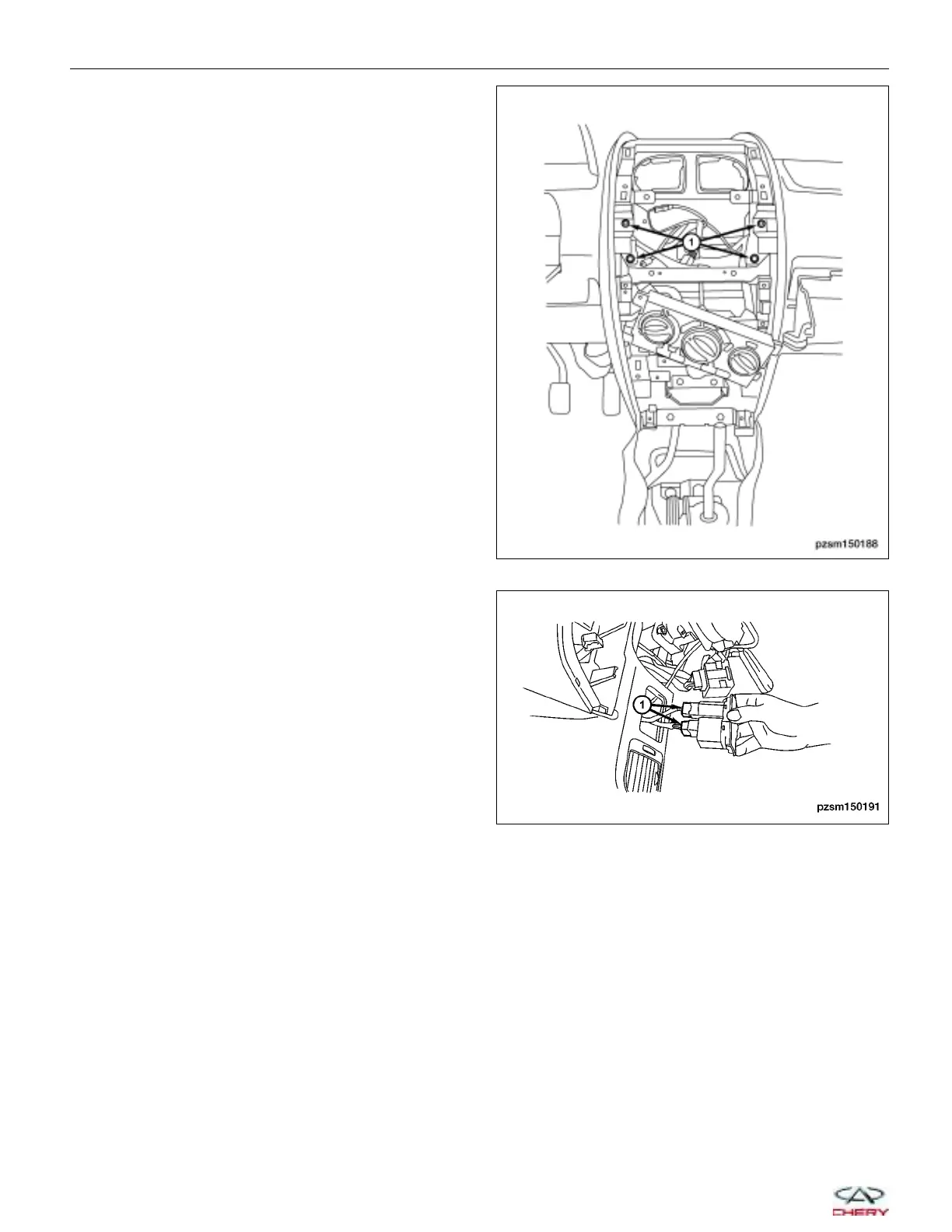

13. Remove the retaining bolts and screws (1) as
shown.
14. Remove the dimmer control switch electrical con-
nectors (1) and remove the dimmer control switch.
15. Remove the following harnesses from the main harness:
• Body harness
• Front end module harness
• Engine control harness
• A/C harness
INSTRUMENT PANEL
PZSM150188
PZSM150191
15–70
Chery Automobile Co., Ltd.
