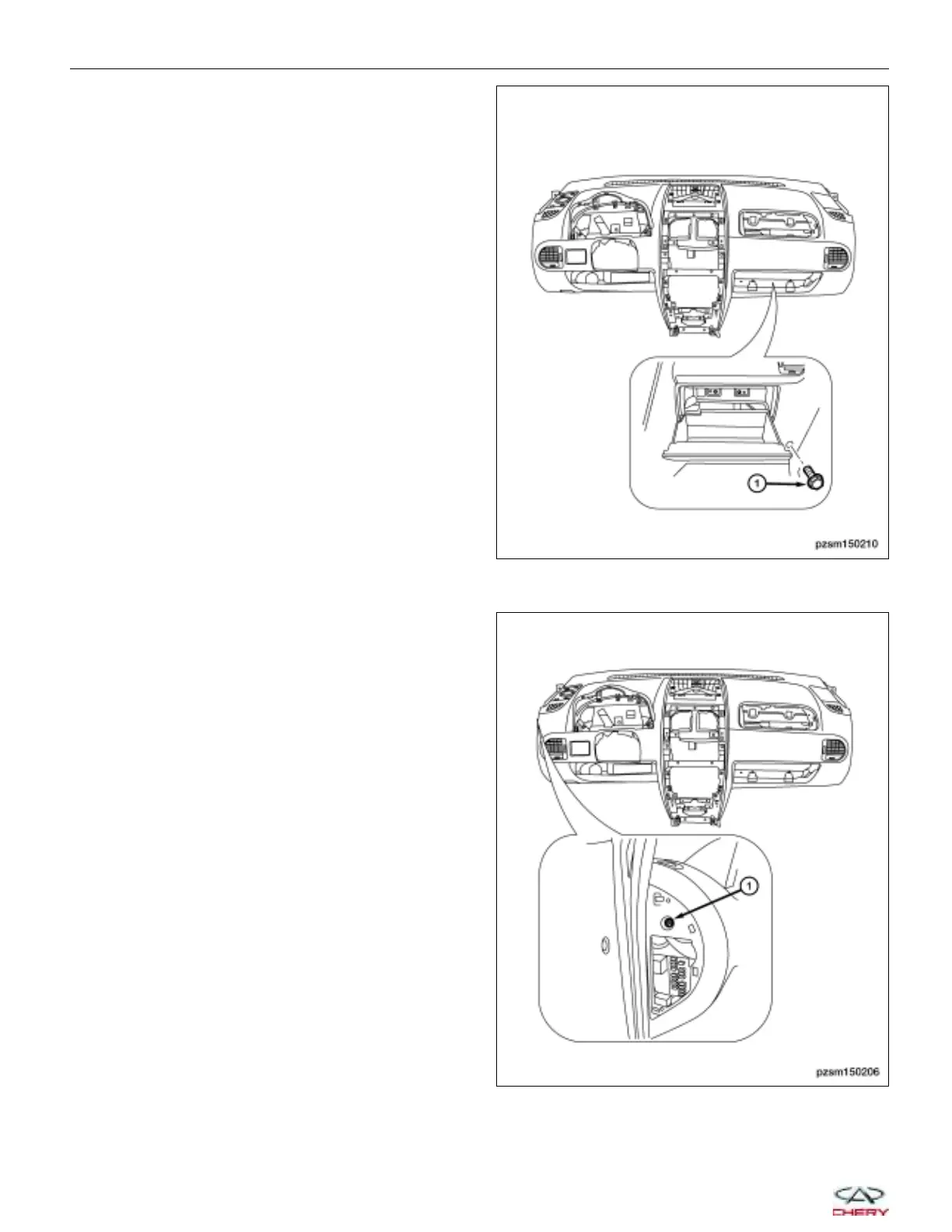

18. Remove the retaining bolt (1).

19. Disconnect the passenger airbag electrical connector.

20. Remove the left instrument panel cover assembly

and remove the retaining screw (1).

21. Remove the right instrument panel cover assembly

and remove the retaining screw.

22. Remove the A-pillar panel (See A-Pillar Panel Removal & Installation in Section 15 Body & Accessories).

INSTRUMENT PANEL

PZSM150210

PZSM150206

15–72

Chery Automobile Co., Ltd.
