Chery A1 2009 - Page 869

To Next Page

To Previous Page

Electrical Schematics

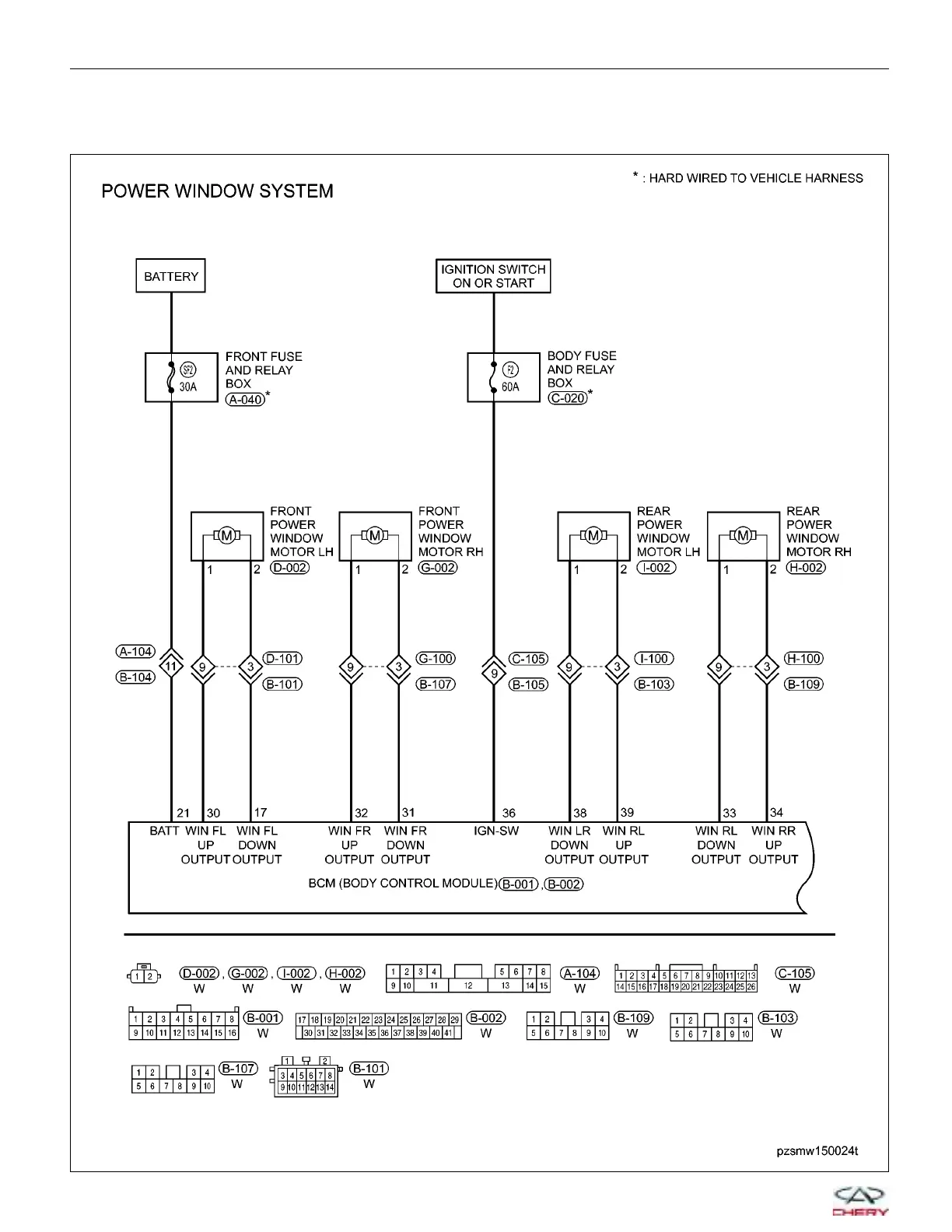

Power Window System (Page 1 of 3)

POWER WINDOWS

PZSMW150024T

15–100

Chery Automobile Co., Ltd.

Main Page

Vehicle Information10
