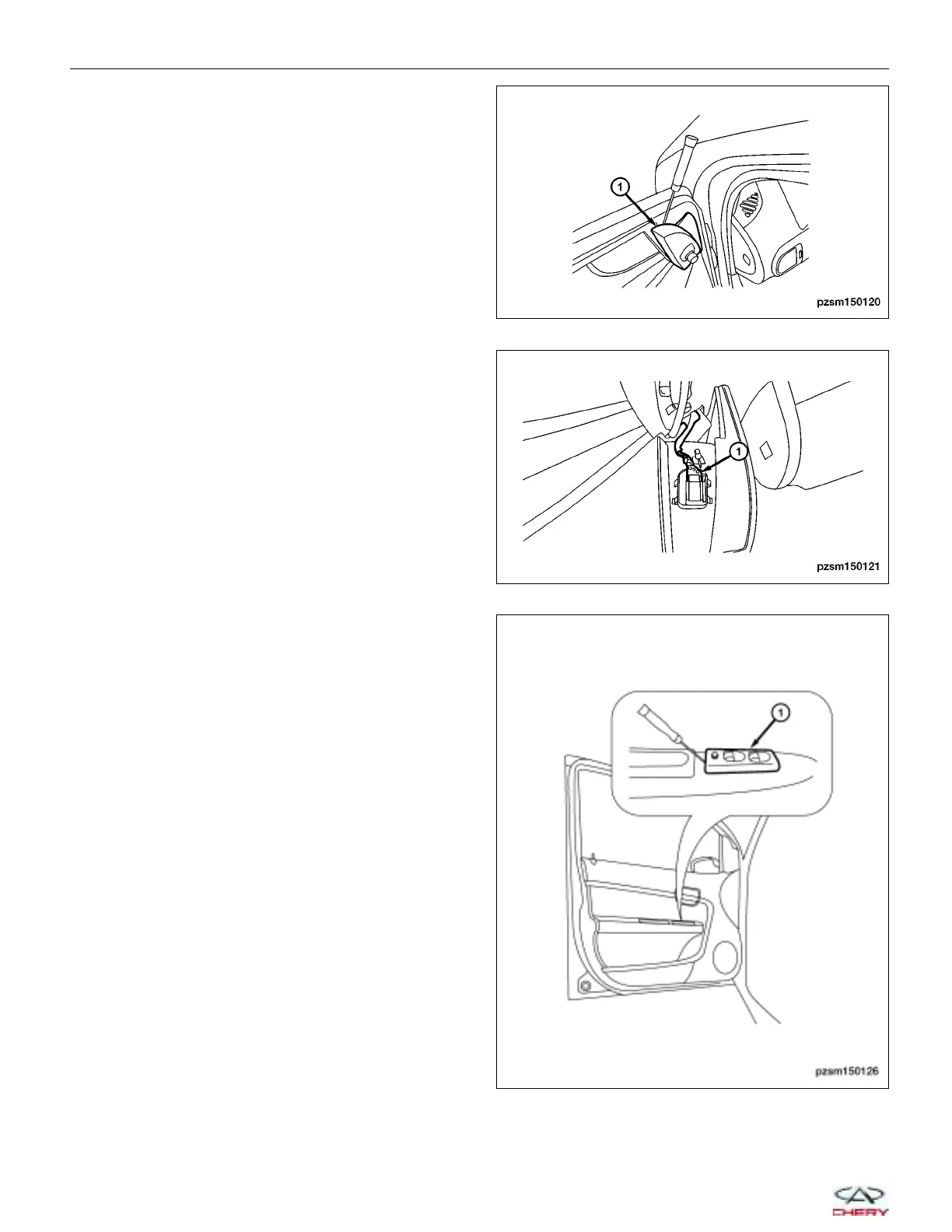

2. Using a trim stick, remove the outside mirror switch

panel (1) from the door trim panel.

3. Disconnect the outside mirror switch electrical con-

nector (1).

4. Using a trim stick, remove the power window

switch assembly (1) on the left front door.

POWER WINDOWS

PZSM150120

PZSM150121

PZSM150126

15–104
