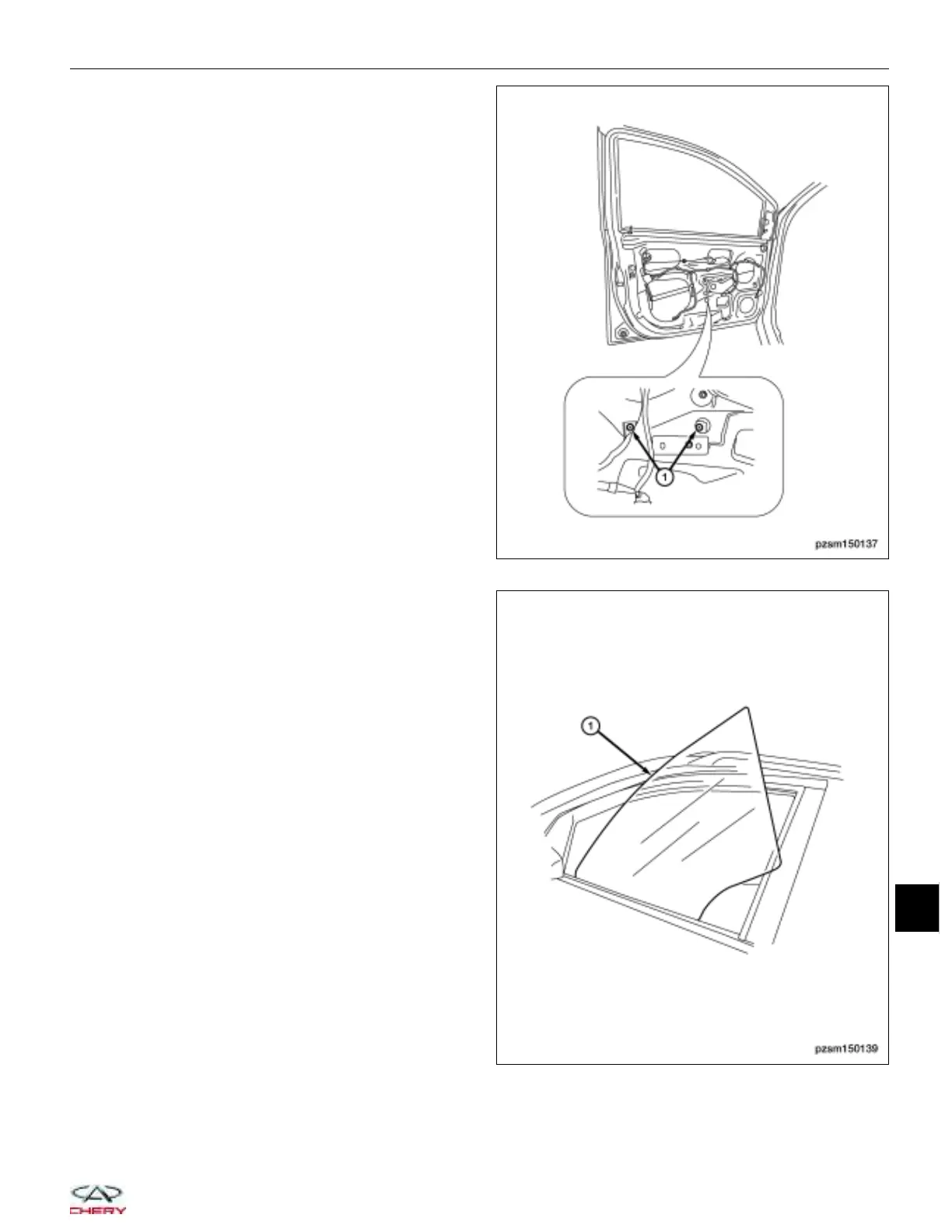

19. Lower the glass to a proper position, remove the

two glass retaining screws (1).

20. Remove the window glass (1).

POWER WINDOWS

PZSM150137

PZSM150139

15–111
