2. Remove the rear seat cushion.

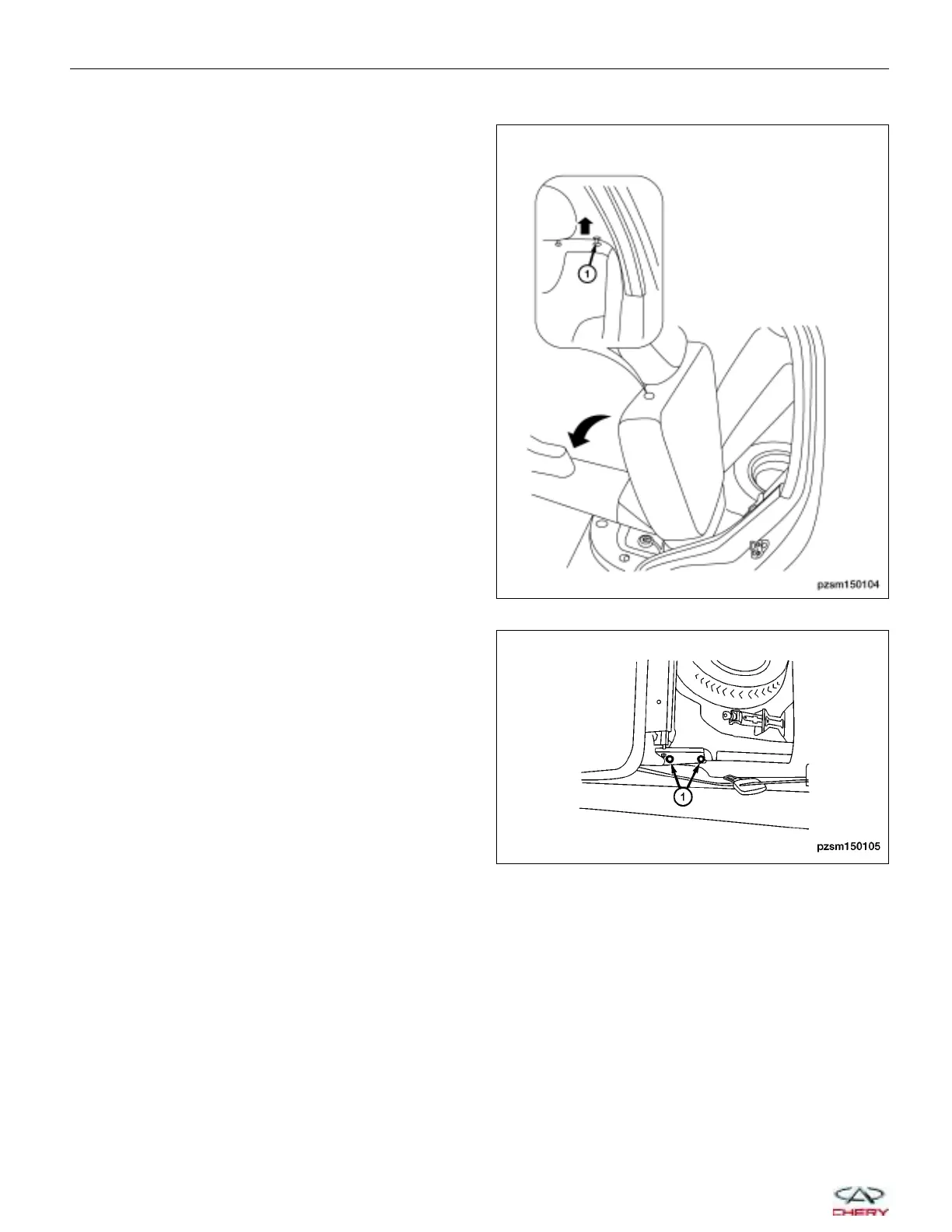

3. Pull the seat release (1) upward to fold the rear

seat.

4. Remove the two left side rear seat mounting bolts

(1).

(Tighten: Left rear seat mounting bolts to

25 ± 3 N·m)

5. Remove the two right side rear seat mounting bolts.

(Tighten: Right rear seat mounting bolts to 25 ± 3 N·m)

6. Open the rear hatch.

7. Remove the spare tire.

SEATS

PZSM150104

PZSM150105

15–116

Chery Automobile Co., Ltd.
